The AD5669RBCPZ-1500 device is a low-power, 8-channel, 16-bit, buffered voltage output DAC, powered by a single power supply ranging from 2.7V to 5.5V, and monotonicity is guaranteed through design. This device is built-in with a 1.25V, 5 ppm/°C reference voltage source, and the full-scale output range is 2.5V. When powered on, the on-chip reference voltage source is turned off, so the external reference voltage can be used. The internal reference voltage is enabled through software writing.

Technical Specification

Number of digits: 16

Digital-to-analog converter number: 8

Establishment time: 7µs

Output type: Voltage-Buffered

Differential output: None

Data interface: I2C

Reference types: External, Internal

Voltage - Power supply, simulation: 2.7V to 3.6V

Voltage - Power supply, figure: 2.7V to 3.6V

INL/DNL (LSB) : ±8, ±1 (maximum)

Architecture: Resistor series DAC

Operating temperature: -40°C to 105°C

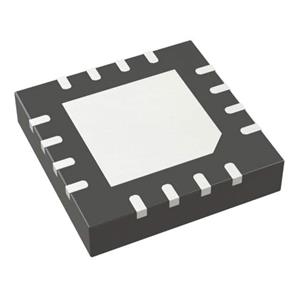

Device packaging: 16-LFCSP-WQ (4x4)

Installation type: Surface mount type

The AD5669RBCPZ-1500 is suitable for applications that require high precision and low power consumption, such as precision instrumentation, measurement systems, industrial automation control and other fields ‌.
