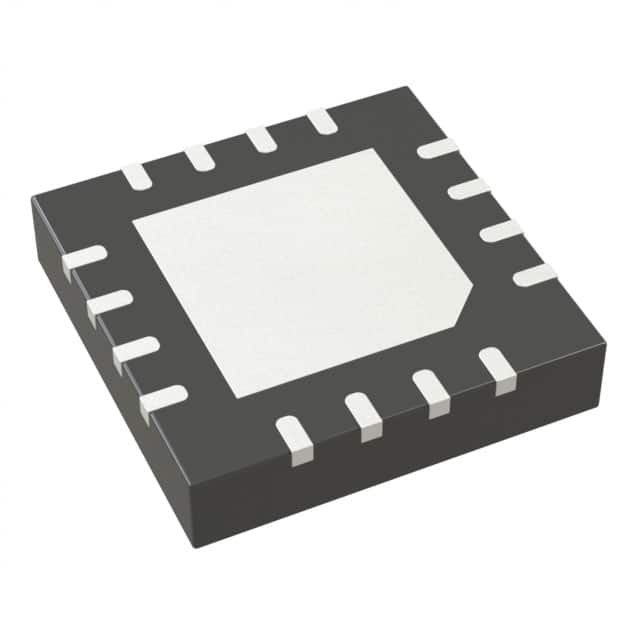

The AD5668BCPZ-1500 is a low-power, 8-channel, 16-bit buffered voltage output DAC (analog-to-digital converter). This device is powered by a single power supply ranging from 2.7V to 5.5V. Monotonicity is guaranteed through design. It has an on-chip reference voltage source built in and an internal gain of 2.

Technical Specification

Number of digits: 16

Digital-to-analog converter number: 8

Establishment time: 7µs

Output type: Voltage-Buffered

Differential output: None

Data interface: SPI, DSP

Reference types: External, Internal

Voltage - Power supply, simulation: 2.7V to 5.5V

Voltage - Power supply, digital: 2.7V to 5.5V

INL/DNL (LSB) : ±8, ±1 (maximum)

Architecture: Resistor series DAC

Operating temperature: -40°C to 105°C

Device packaging: 16-LFCSP-WQ (4x4)

Installation type: Surface mount type

These technical specifications make the AD5668BCPZ-1500 suitable for a wide range of applications that require high precision, low power consumption, such as optical transceivers, power amplifier control, data acquisition systems ‌.
