The AD5361BCPZ is a 16-channel, 14-bit voltage output type digital-to-analog converter (DAC). It is equipped with 16 built-in 14-bit Dacs, providing buffer voltage output, and the output range is four times the reference voltage. The gain and offset of each DAC can be adjusted independently to eliminate errors. The AD5361BCPZ is divided into two groups, each consisting of 8 Dacs, and the output range of each group can be adjusted independently by offset DAC ‌.

Technical Specification

Digit number: 14

Digital-to-analog converter number: 16

Establishment time: 30µs

Output type: Voltage-Buffered

Differential output: None

Data interface: SPI, DSP

Reference type: External

Voltage - Power supply, simulation: 8V to 16.5V, -4.5V to 16.5V

Voltage - Power supply, digital: 2.5V to 5.5V

INL/DNL (LSB) : ±1 (maximum), ±1 (maximum)

Architecture: Resistor series DAC

Operating temperature: -40°C to 85°C

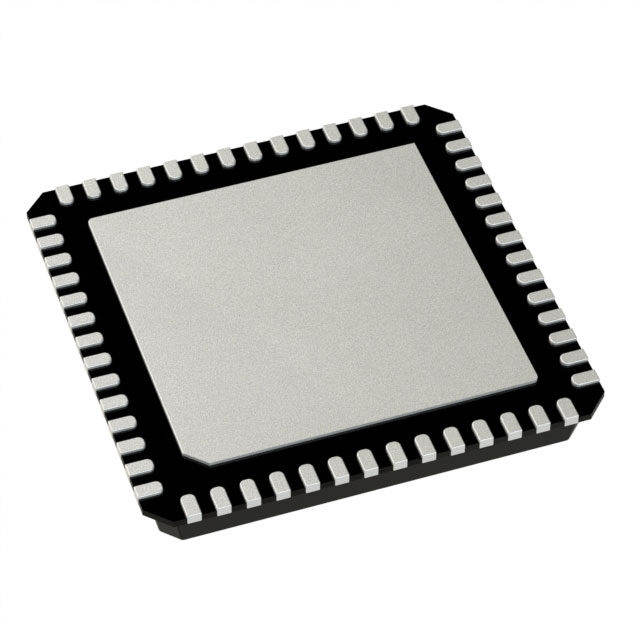

Device packaging: 56-LFCSP-VQ (8x8)

Installation type: Surface mount type

AD5361BCPZ for instrumentation, industrial control systems, level setting of automatic test equipment (ATE), variable optical attenuator (VOA), optical line card and other fields ‌.
