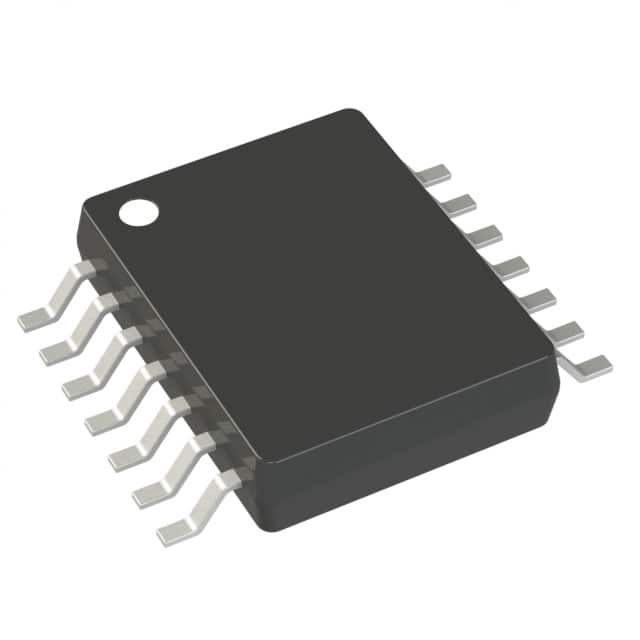

For picture reference, please see the specifications
< >

Commodity Model:AD5025BRUZ

Trade Name:Digital to Analog Converters (DAC)

Brand:ADI

Particular Year:25+

Package:TSSOP-14

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
AD5025BRUZ
Package
TSSOP-14
Describe
Full-precision 12-bit VOUT nanoDAC® digital-to-analog converter, SPI interface

Product Description

The AD5025BRUZ is a low-power, dual-channel 12-bit buffered voltage output nanoDAC® DAC with a relative accuracy characteristic of ±1 LSB INL (integral nonlinearity). It features an independent reference voltage pin and can be powered by a single supply ranging from 4.5V to 5.5V. In addition, it also provides a differential accuracy characteristic of ±1 LSB.


The AD5025BRUZ has the following main features:

Low-power dual-channel 12/14/16-bit DAC, ±1 LSB INL

Independent reference voltage pin

Track-to-rail operation

4.5V to 5.5V power supply

Power on and reset to zero level or intermediate level

Shutdown mode: 400 nA (5 V)

Three turn-off functions

Each channel is independently turned off

The burrs are very low when powered on

Hardware shutdown and locking function

Hardware LDAC, with software LDAC coverage function

CLR function, reset to programmable code

SDO Daisy chain option

14-pin TSSOP


Application scenarios

The AD5025BRUZ is suitable for a variety of application scenarios that require high-precision analog-to-digital conversion, including:

Process control

Data acquisition system

Portable battery-powered instrument

Digital gain and offset voltage adjustment

Programmable voltage source and current source

Programmable attenuator


Associated Products

Model

Brand

Package

Quantity

Describe

AD5669RBCPZ-2500

ADI

LFCSP-16

2000

8-channel, 16-bit, I2C voltage output denseDAC, with an integrated 5 ppm/°C on-chip reference voltage source

AD5669RBCPZ-1500

ADI

LFCSP-16

3000

8-channel, 16-bit, I2C voltage output denseDAC, with an integrated 5 ppm/°C on-chip reference voltage source

AD5541ABCPZ-500

ADI

LFCSP-10

2500

2.7V to 5.5V, serial input, voltage output, 16-bit nanoDAC™ digital-to-analog converter

AD5668BCPZ-1500

ADI

LFCSP-16

3000

16-bit digital-to-analog converter 8-channel 16-LFCSP-WQ (4x4)

AD5725ARSZ-1500

ADI

SSOP-28

3000

Four-channel, 12-bit, parallel input, unipolar/bipolar, voltage output DAC

AD5669RBCBZ-1

ADI

WLCSP-16

3000

8-channel, 16-bit, I2C voltage output denseDAC, with an integrated 5 ppm/°C on-chip reference voltage source

AD5362BCPZ

ADI

LFCSP-56

3000

8-channel, 16-bit, serial input, voltage output digital-to-analog converter (DAC)

AD5361BCPZ

ADI

LFCSP-56

3000

16-channel, 14-Bit, serial input, voltage output type DAC

AD5360BCPZ

ADI

LFCSP-56

3000

16-channel, 14-Bit, serial input, voltage output digital-to-analog converter (DAC)

AD5755-1ACPZ

ADI

LFCSP-64

2500

Four-channel, 16-bit, serial input, 4-20mA and voltage output DAC
