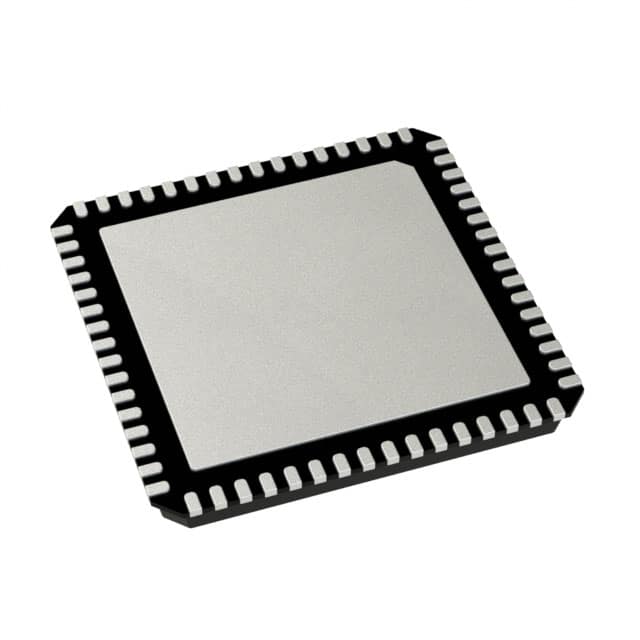

The AD5755BCPZ is a four-channel, voltage and current output DAC, powered by a supply ranging from -26.4V to +33V. The on-chip dynamic power control function is based on the DC-DC boost converter optimized for achieving lower on-chip power consumption. In the current mode, the voltage of the output driver can be adjusted within the range of 7.4V to 29.5V, resulting in lower package power consumption. The AD5755BCPZ adopts a multi-functional three-wire serial interface, capable of operating at a maximum clock rate of 30 MHz, and is compatible with standard SPI®, QSPI™, MICROWIRE™, DSP and microcontroller interface standards.

Key Features

16-bit resolution and monotonicity

Dynamic power supply control for thermal management

The current and voltage output pins can be connected to one pin

IOUT range: 0mA - 20mA, 4mA - 20mA or 0mA - 24mA±0.05% TUE (total non-adjustment error) (maximum value)

VOUT range: 0- 5V, 0- 10V, ±5V, ±10V±0.04% TUE (maximum value)

User-programmable offset and gain

Intrathecal diagnosis

On-chip reference voltage source (±5 ppm/°C, typical value)

Temperature range: -40 ℃ to +105℃

These characteristics make the AD5755BCPZ widely used in a variety of applications that require high precision, low noise and low distortion, including industrial control, medical equipment, instrumentation and other fields ‌‌.
