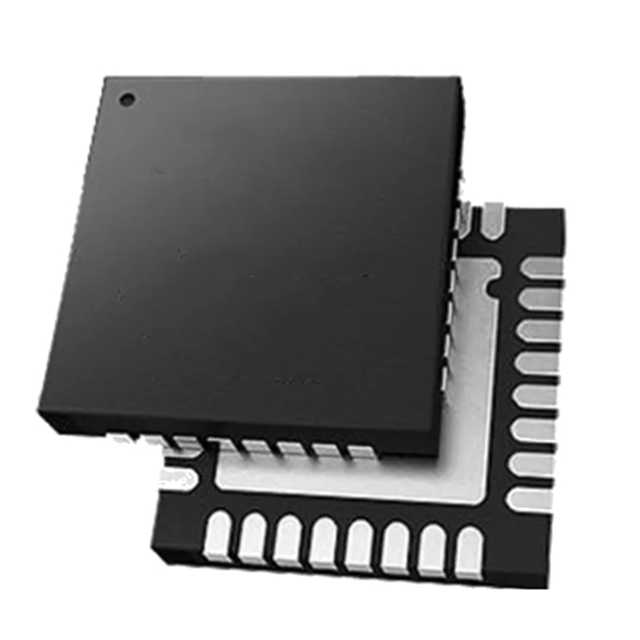

The AD9748ACPZ is the third-generation 8-bit resolution wideband product of the TxDAC series, featuring high-performance and low-power CMOS digital-to-analog converters (Dacs). The TxDAC series consists of pin-compatible 8, 10, 12, and 14-bit Dacs, which are specifically optimized for the transmission signal paths of communication systems. The AD9748ACPZ offers outstanding AC and DC performance while supporting an update rate of up to 210 MSPS.

The main features of AD9748ACPZ include:

High-performance products in the pin-compatible TxDAC product series

Linearity

0.1 LSB DNL

0.1 LSB INL

Data format: Binary complement or standard binary

Differential current output: 2 mA to 20 mA

Power consumption: 135 mW (at 3.3 V)

Shutdown mode: 15 mW (at 3.3V)

1.20V on-chip reference voltage source

CMOS compatible digital interface

32-pin LFCSP package

Edge-triggered latch

Fast setup time: 11 ns (up to 0.1% full scale)

These features make the AD9748ACPZ suitable for communication, direct digital frequency synthesizer (DSS), instrumentation and other fields that require high performance digital-to-analog conversion ‌.
