The AD5721BCPZ is a single-channel, 12-bit serial input, voltage-output digital-to-analog converter (DAC), powered by a single power supply (4.75V to 30V), integrating an output amplifier and a reference voltage source buffer, forming an extremely convenient universal solution. This device adopts a serial interface, is capable of operating at a maximum clock rate of 50 MHz, and is compatible with the interface standards of DSP and microcontrollers.

Key parameters

Digit number: 12

Digital-to-analog converter number: 1

Establishment time: 12.5µs

Output type: Voltage-Buffered

Differential output: None

Data interface: SPI

Reference type: External

Voltage - Power supply, simulation: 4.75V to 30V

Voltage - Power supply, digital: 1.7V to 5.5V

INL/DNL (LSB) : ±0.5 (maximum), ±0.5 (maximum)

Architecture: R-2R

Operating temperature: -40°C to 125°C

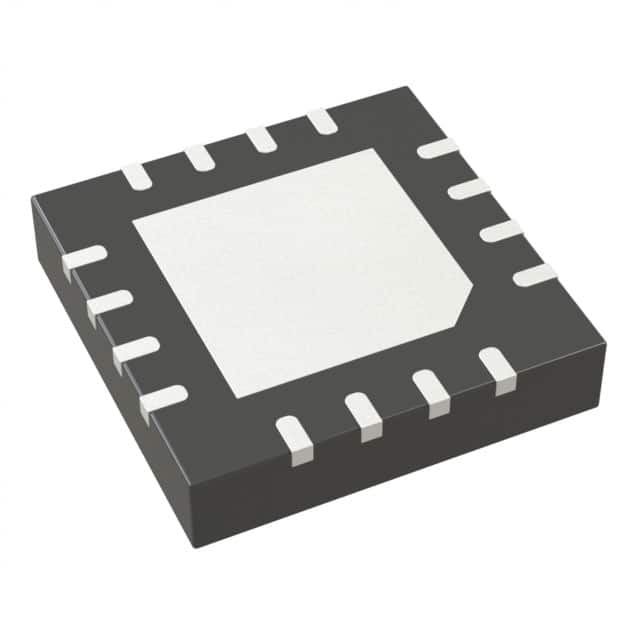

Device packaging: 16-LFCSP (3x3)

Installation type: Surface mount type

Application scenarios

The AD5721BCPZ device is widely used in various scenarios, including:

Industrial automation

Instruments and meters, data acquisition

Open-loop/closed-loop servo control, process control

Programmable logic controller
