The AD5422ACPZ is a low-cost, precise, fully integrated 16-bit digital-to-analog converter (DAC) with an integrated programmable current source and programmable voltage output, designed to meet the requirements of industrial process control applications. The operating voltage range of the AVDD of this device is from 10.8V to 40V. The compliant voltage range of the output loop is from 0 V to AVDD - 2.5 V.

Technical Specification

Number of digits: 16

Digital-to-analog converter number: 1

Establishment time: 25µs (V), 40µs (A) (typical values)

Output type: Voltage or Current-Buffered

Differential output: None

Data interface: SPI, DSP

Reference types: External, Internal

Voltage - Power supply, simulation: 10.8V to 40V, -3V to 26.4V

Voltage - Power supply, digital: 2.7V to 5.5V

INL/DNL (LSB) : -, ±1.3 (maximum)

Architecture: R-2R

Operating temperature: -40°C to 105°C

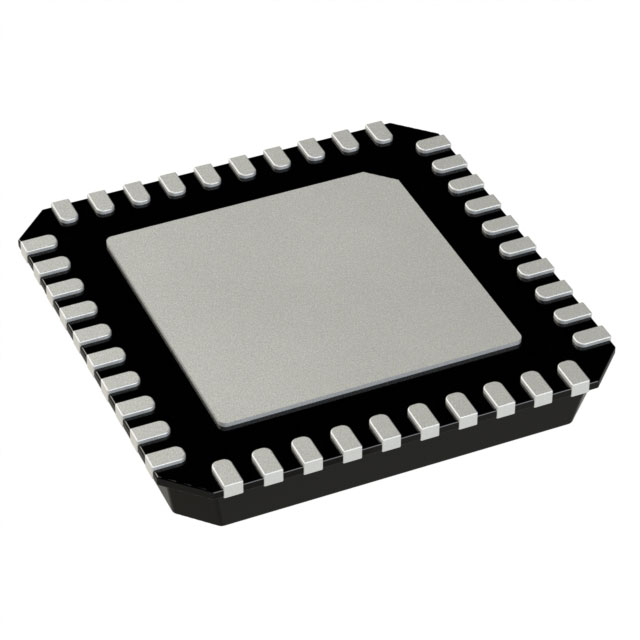

Device packaging: 40-LFCSP-VQ (6x6)

Installation type: Surface mount type

The AD5422ACPZ is widely applied in fields such as industrial process control, actuator control, and programmable controllers. Its high precision and reliability make it an ideal choice for these applications.
