The AD5683RACPZ-1 device belongs to the nanoDAC+® series and is a low-power, single-channel, 16-bit buffered voltage output DAC. This device is equipped with a default enabled 2.5V reference voltage source, providing a drift of 2ppm/°C. The output range can be programmed to 0 V to VREF or 0 V to 2 × VREF. The AD5683RACPZ-1 device is powered by a single power supply ranging from 2.7V to 5.5V, and monotonicity is guaranteed through design.

Key performance

Number of digits: 16

Digital-to-analog converter number: 1

Establishment time: 7µs

Output type: Voltage-Buffered

Differential output: None

Data interface: SPI

Reference types: External, Internal

Voltage - Power supply, simulation: 2.7V to 5.5V

Voltage - Power supply, digital: 1.8V to 5.5V

INL/DNL (LSB) : ±8 (maximum), ±1 (maximum)

Architecture: Resistor series DAC

Operating temperature: -40°C to 105°C

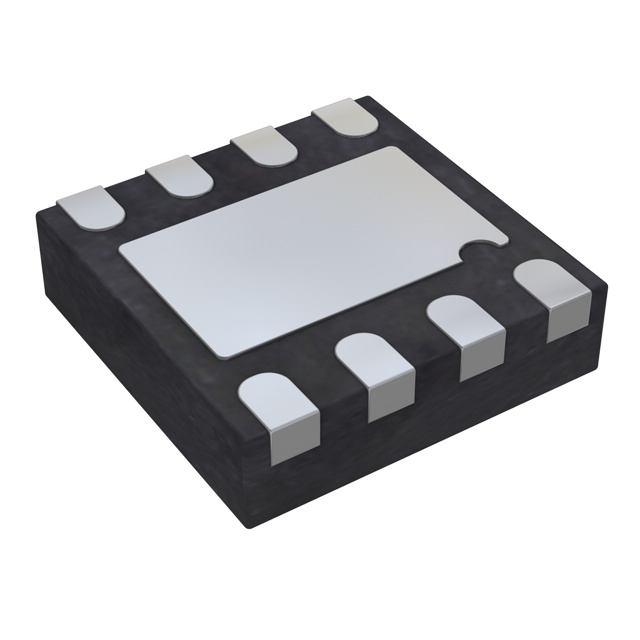

Device packaging: 8-LFCSP-UD (2x2)

Installation type: Surface mount type

The AD5683RACPZ-1 device is widely used in a variety of fields including communications, industrial control, test and measurement, and instrumentation ‌.
