The AD5691RACPZ-1 is a low-power, single-channel, 12-bit buffered voltage output DAC (digital-to-analog converter) in the nanoDAC+ series ‌. This device integrates a default 2.5V reference voltage source internally, providing a drift of 2 ppm/°C.

Basic parameters

The main parameters of AD5691RACPZ-1 include:

Digit number: 12

Digital-to-analog converter number: 1

Establishment time: 7µs

Output type: Voltage-Buffered

Differential output: None

Data interface: I2C

Reference types: External, Internal

Voltage - Power supply, simulation: 2.7V to 5.5V

Voltage - Power supply, digital: 1.8V to 5.5V

INL/DNL (LSB) : ±2 (maximum), ±1 (maximum)

Architecture: Resistor series DAC

Operating temperature: -40°C to 105°C

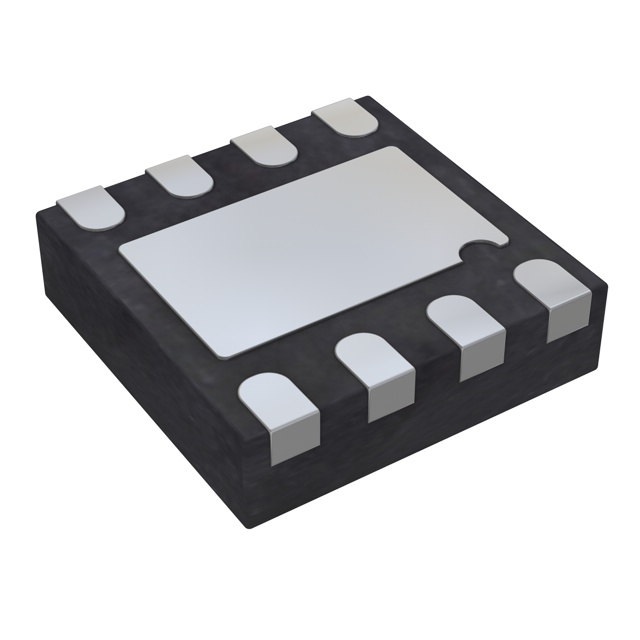

Device packaging: 8-LFCSP-UD (2x2)

Installation type: Surface mount type

Application scope

The AD5691RACPZ-1 is widely used in a variety of fields, including process control, data acquisition systems, digital gain and offset voltage regulation, programmable voltage sources and optical modules ‌‌.
