The AD5694BCPZ device belongs to the nanoDAC+™ series and is a low-power, four-channel, 16-bit buffered voltage output DAC. This device is equipped with an internal gain selection pin, and the full-scale output is 0V to VREF (gain = 1) or 0V to 2VREF (gain = 2). The AD5694BCPZ is powered by a single supply ranging from 2.7V to 5.5V. Through design, it ensures monotonicity and features a gain error of less than 0.1% FSR and a offset error of 1.5mV.

The main features of AD5694BCPZ are as follows:

High relative accuracy (INL) : ±2 LSB (maximum value, 16 bits)

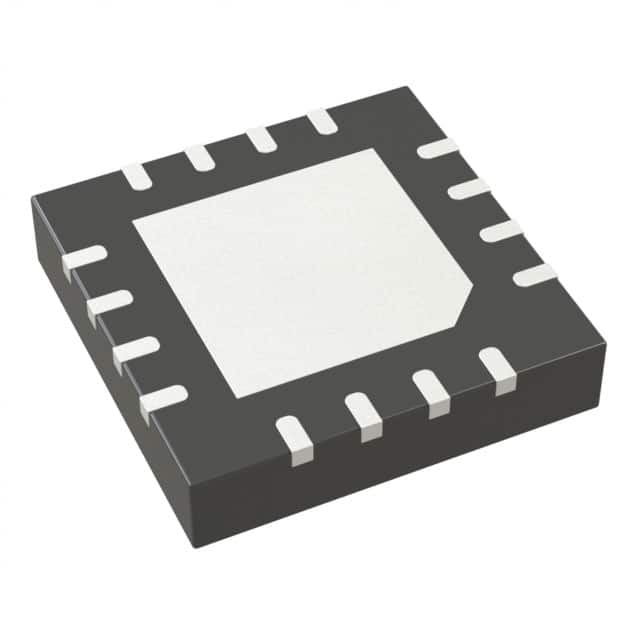

Small package: 3mm × 3mm, 16-pin LFCSP

Total Unadjustable error (TUE) : ±0.1% FSR (maximum value)

Offset error: ±1.5 mV (maximum value)

Gain error: ±0.1% FSR (maximum value)

High driving capacity: 20 mA, 0.5 V (power supply rail)

User-selectable GAIN: 1 or 2 (GAIN pin)

Reset to zero level or intermediate level (RSTSEL pin)

1.8V logic compatibility

400 kHz I2C compatible serial interface

Four available I2C addresses

Low burrs: 0.5 nV-sec

Low power consumption: 1.8 mW (3 V)

2.7V to 5.5V power supply

Temperature range: -40°C to +105°C

These features make the AD5694BCPZ suitable for application scenarios that require high precision and low power consumption.
