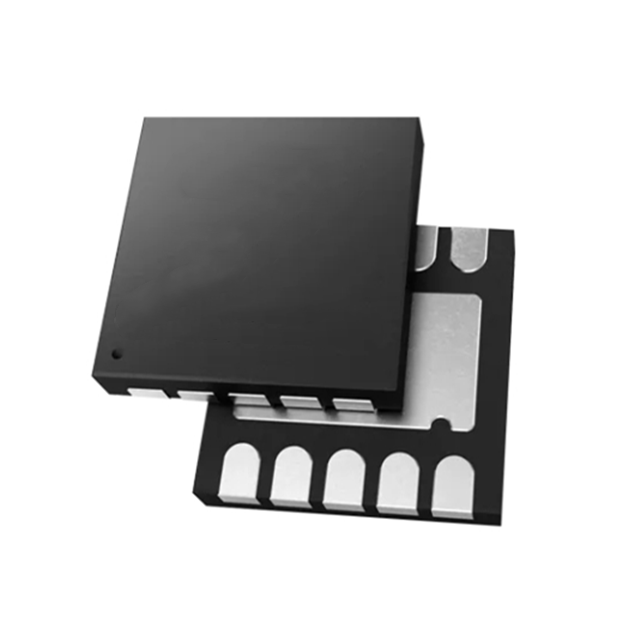

The AD5324BCPZ is a four-channel voltage-output 12-bit digital-to-analog converter (DAC) in a 10-pin LFCSP package ‌. It is suitable for single power supply ranging from 2.5V to 5.5V, and the power consumption at 3V is 500 μA.

The AD5324BCPZ is equipped with an on-chip output amplifier, enabling rail-to-rail output swing with a slew rate of 0.7V /μs. The device uses a three-wire serial interface, supports clock rates up to 30 MHz, and is compatible with standard SPI, QSPI, MICROWIRE and DSP interface standards ‌.

The main features of AD5324BCPZ include:

Four buffer 12-bit Dacs, available in 10-pin MSOP and 10-pin LFCSP packages

Version: ±16 LSB INL, Grade B: ±10 LSB INL

AD5324-EP supports defense and aerospace applications (AQEC standard)

Military temperature range (-55 °C to +125 °C)

Application scenarios

Due to its low power consumption and high precision, the AD5324BCPZ is highly suitable for portable battery-powered devices.
