The LTC2672HUH-12 is a five-channel, 12-bit current source and digital-to-analog converter (DAC), providing five highly compatible current source outputs and guaranteeing a 600mV voltage drop at 200mA. Each channel has eight programmable current ranges, with a full-scale output up to 300 mA. These channels can be connected in parallel, enabling ultra-fine regulation of large currents or achieving combined outputs up to 1.5A. Each output channel has a dedicated power pin. Each channel can operate within the range of 2.1V to VCC, and the internal switch can connect any output to an optional negative power supply.

Performance parameters

Number of digits: 12

Digital-to-analog converter number: 5

Establishment time: 21.1µs (typical value)

Output type: Current - Unbuffered

Differential output: None

Data interface: Serial, SPI

Reference types: External, Internal

Voltage - Power supply, simulation: 2.85V to 5.5V

Voltage - Power supply, digital: 1.7V to 5.5V

INL/DNL (LSB) : 12LSB, 0.45LSB

Architecture: Current source

Operating temperature: -40°C to 125°C

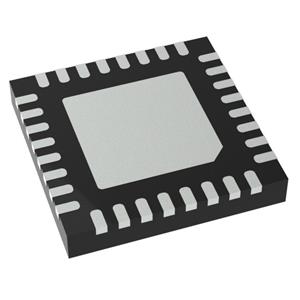

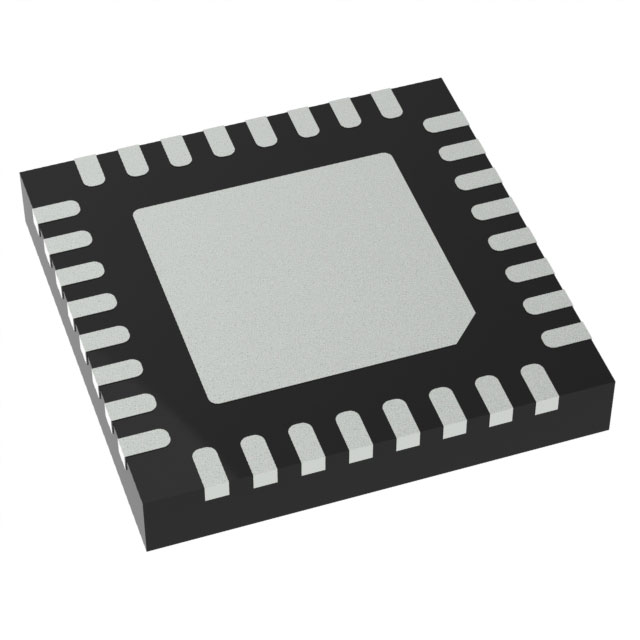

Device packaging: 32-QFN (5x5)

Installation type: Surface mount type

LTC2672HUH-12 is widely used in the following various scenarios:

Tunable laser

Bias of semiconductor optical amplifiers

Resistance heater

Current mode bias
