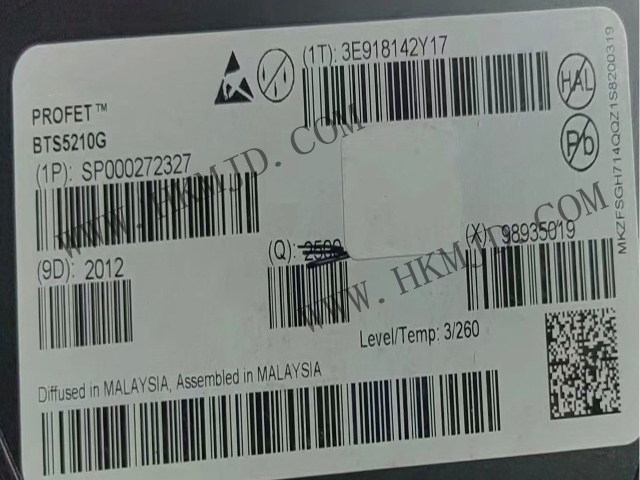

The BTS5210G is a two-channel intelligent high-side power switch with integrated N-channel vertical power MOSFETs using SIPMOS technology for power management applications with 12V and 24V grounded loads.

BTS5210G Key Features

Dual high side switches: 2 independent channels with 140mΩ on-resistance per channel (typical).

Wide operating voltage range: 5.5V ~ 40V, supporting automotive cold start and load sag protection.

High Current Capability: 1.8A rated current for single channel, dual channels in parallel can support higher loads.

Low standby current: CMOS compatible inputs optimised for battery powered systems.

Fast inductive load demagnetisation: Reduces switching transient voltage shocks.

Embedded protection features:

Short circuit protection

Overload protection

Thermal shutdown (TJ = 150°C)

Overvoltage protection (including load sag)

Reverse battery protection (external resistor required)

ESD protection (MIL-STD-883D compliant)

BTS5210G Product Attributes

Product Category: Power Switch ICs - Power Distribution

Type: High Side

Number of Outputs: 2 Output

Output Current: 2.4 A

Current Limit: 6.5 A

On-resistance-Max: 140 mOhms

Runtime - max: 250 us

Idle time - max: 270 us

Operating supply voltage: 5.5 V to 40 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 150 C

Mounting style: SMD/SMT

Package / Case: SOIC-14

BTS5210G Typical Applications

Automotive Electronics: Body Control Module (BCM), Relay Replacement, Lighting Drivers.

Industrial automation: motor control, PLC interface, sensor power management.

Consumer Electronics: Smart Home, High Inrush Current Loads (e.g. LED Drivers).
