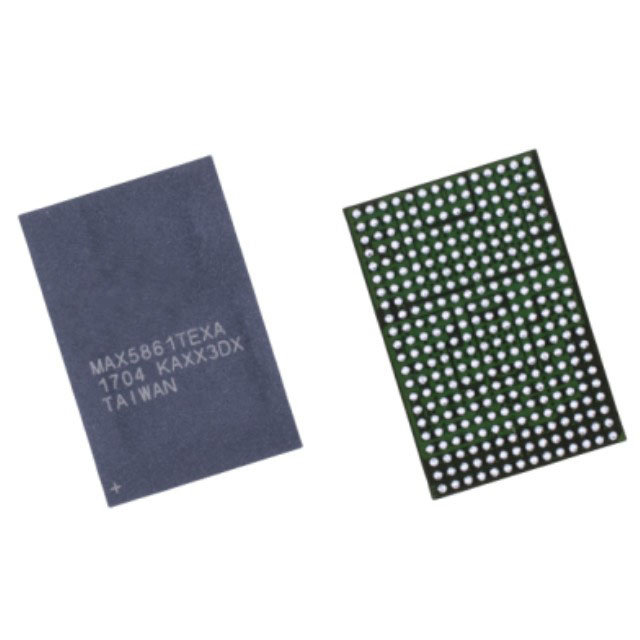

MAX5861TEXA: DOCSIS 3.1 High-Density SCQAM and OFDM Downlink Cable Modulator, LFBGA-308

The MAX5861TEXA is an integrated high-density SCQAM and OFDM downlink cable modulator, digital upconverter (DUC), and RF digital-to-analog converter (RF-DAC).The MAX5861 is DOCSIS 3.1 compliant and is optimized for converged cable access platform (CCAP) hardware.The MAX5861 performs baseband I/Q symbol-to-RF upconversion to digitally synthesise an optional combination of SCQAM and OFDM modules through a single RF port. Up to six 192MHz SCQAM or OFDM channel module combinations can be initiated simultaneously, with one module defined as either a 32 X 6MHz (or 24 X 8MHz) SCQAM channel or an OFDM channel (with bandwidths up to 192MHz).

Basic Information:

Model: MAX5861TEXA

Package: LFBGA-308

Type: RF Modulator

Applications:

- CCAP, Edge QAM, CMTS

- DOCSIS 3.0/3.1 and DVB-C/C2

- Multi-Dwelling Unit (MDU), Compact Front End

- Remote PHY, Coaxial Cable Media Converter

MAX5861TEXA Product Features:

High-density downlink cable modulator

Combines 32 x 6MHz SCQAM channels and DOCSIS 3.1 OFDM channels into up to six 192MHz modules

Integrated 14-bit 4.9152Gsps RF-DAC

Highly flexible and configurable

ITU-T J.83 Annex A, B and C SCQAM channels

IFFT processing for D3.1 OFDM channels

LVDS or SSTL 1.2/1.5 DDR data port

One 10-bit SCQAM port with 160 channel capacity

Two 9-bit OFDM ports with 6 OFDM channel capacity

Channel bandwidth:

1MHz to 8MHz (SCQAM)

24MHz/48MHz/96MHz/192MHz OFDM

192MHz IFFT bypass mode

Full SCQAM shortcut support within 192MHz module

Module shortcut support within 1218MHz output bandwidth

Other features to help simplify RF design

Programmable digital pre-distortion

High output power: 9dBm (peak continuous wave)

Low power, compact solution

5.9W with 128 SCQAM + 2 OFDM channels

Operating temperature range TA = -40°C to TJ = +110°C

12mm x 18mm, 308-pin LFBGA
