Trade Name:RF Modulator
Brand:ADI
Particular Year:25+
Package:UTQFN-24
Delivery Date:New and Original
Stock: 3000pcs
LTC5588IPF-1: RF Modulator - 200MHz to 6000MHz Quadrature Modulator with Ultra-High OIP3
BASIC INFORMATION:
MODEL: LTC5588IPF-1
PACKAGE: UTQFN-24
TYPE: RF Modulator
Overview:
The LTC5588IPF-1 is a direct conversion I/Q modulator designed for high performance wireless applications. It uses differential baseband I and Q signals to achieve direct modulation of an RF signal. The device supports LTE, GSM, EDGE, TD-SCDMA, CDMA, CDMA2000, W-CDMA, WiMAX and other communication standards. It can also be configured as a mirror rejection upconverting mixer by applying 90° shift signals to the I and Q inputs.
LTC5588IPF-1 Product Features:
Frequency Range: 200MHz to 6000MHz
Output IP3:
Typical +31dBm at 2140MHz (Uncalibrated)
Typical +35dBm (User Optimised)
Single pin calibration to optimise OIP3
Low Output Noise Layer (Offset at 6MHz):
No RF: -160.6dBm/Hz
POUT = 5dBm: -155.5dBm/Hz
Integrated LO Buffer and LO Quadrature Phase Generator
High Impedance DC Interface to Baseband Inputs (with 0.5V Common Mode Voltage)
50Ω Single-Ended LO and RF Ports
3.3V Operating Voltage
Fast Turn-Off / Turn-On: 10ns / 17ns

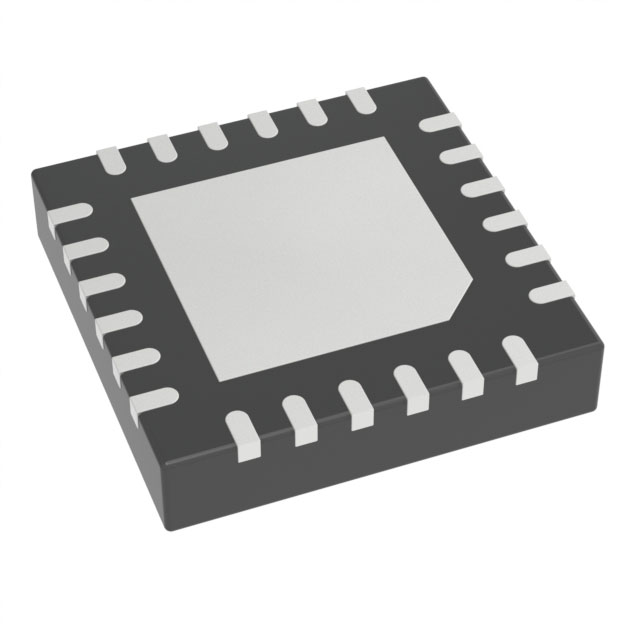

24-pin 4mm x 4mm UTQFN Package
LTC5588IPF-1 Applications: LTE, GSM/EDGE, W-CDMA, TD-SCDMA, CDMA2000, WiMAX base stations
Mirror frequency suppression upconverter
Point-to-point microwave links
Broadcast modulator
