Trade Name:LTC5599IUF
Data Manual:LTC5599IUF.pdf
Brand:ADI
Particular Year:23+
Package:24-QFN
Delivery Date:New and Original
Stock: 1000pcs
The LTC5599IUF is a direct-conversion I/Q modulator designed for low-power wireless applications, enabling direct modulation of differential baseband I and Q signals over an RF carrier. Single sideband modulation or sideband rejection upconversion is possible. Single sideband modulation or sideband rejection upconversion is achieved by applying a 90° phase shift signal to the I and Q inputs.The I/Q baseband input ports can be ac or dc coupled to a common-mode voltage level of approximately 1.4 V. The SPI interfaces control the power supply currents, modulator gain, and allow for optimisation of the low-level carrier feedthrough and sideband rejection.
Product Attributes
Function: Modulator
LO Frequency: 180MHz ~ 1.9GHz
RF Frequency: 30MHz ~ 1.3GHz
P1dB: 5dBm
Noise Floor: -156.6dBm/Hz
Current - Supply: 28 mA
Voltage - Supply: 2.7V ~ 3.6V
Test Frequency: 500MHz
Mounting Type: Surface Mount
Package/Shell: 24-WFQFN Exposed Pad
Supplier Device Package: 24-QFN (4x4)
Applications
● Wireless microphones
● Battery powered radios
● Ad hoc wireless infrastructure networks
● "Blank" transmitters
● Software Defined Radio (SDR)
● Military radios
Model
Brand
Package
Quantity
Describe
Maxim
LFBGA-308
3000
DOCSIS 3.1 High-Density SCQAM and OFDM Downlink Cable Modulator, LFBGA-308
TI
VQFN-48
3000
Orthogonal modulator from 400MHz to 4.2GHz with integrated wideband PLL/VCO
ADI
LGA-40
3000
Dual-mode Ka-band upconverter with integrated fractional N-division PLL and VCO
A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.
A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.
A: at present, our self-employed brands TI,ST,ADI,NXP,LATTICE,CYPRESS,INFINEON,XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.
A: You can inquire through the website, or by phone and email.
A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.
A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
The full name of Analog Devices is Analog Devices, Inc. (ADI). As an outstanding supplier specializing in semiconductor sensors and signal processing ICs, adi regards innovation, performance and excellence as the cultural pillars of the company and ha…
ADP5310AREZN-255
The ADP5310AREZN-255 is a 3-channel, integrated ultra-low power solution with a dual-channel black regulator and load switch produced by (ADI). The ADP5310AREZN-255 can be directly connected to a wide input voltage range of 2.7V to 15.0V, allowing it …ADP5310AREZN-2.8

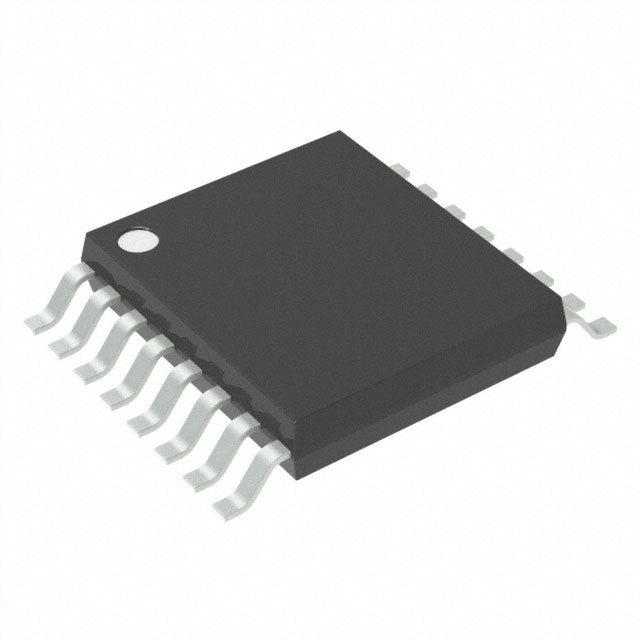

The ADP5310AREZN-2.8 adopts a 16-pin TSSOP_EP package, integrating two step-down regulators and one load switch, which can meet the strict performance and circuit board space requirements. This device can be directly connected to a wide input voltage …LT3045EMSE
