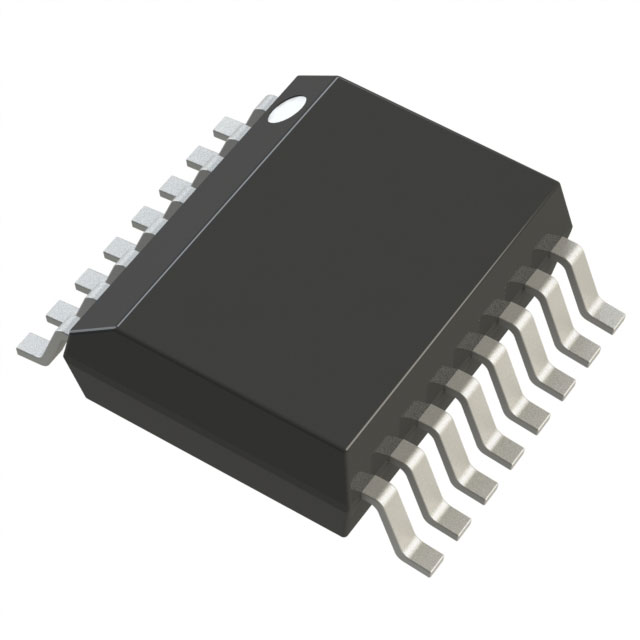

MAX20043FGEEB: USB Interface IC - Automotive Grade Hi-Speed USB 2.0 Protector, QSOP-16

Basic Information:

Model No.: MAX20043FGEEB

Package: QSOP-16

Type: USB Interface IC

Application: Automotive USB Protection

Current - Supply: 1A

Voltage - Supply: 3V ~ 5.5V

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

Package/Shell: 16-SSOP (0.154’, 3.90mm Width)

Supplier Device Package: 16-QSOP

The MAX20043FGEEB provides high ESD and short-circuit protection for low-voltage internal USB data and USB power lines in automotive radio, navigation, connectivity, and USB hub applications.

The MAX20043FGEEB provides high ESD protection of ±15kV air-gap discharges and ±8kV contact discharges at the protected HVBUS, HVD+, and HVD- outputs.

The MAX20043FGEEB features a low on-resistance (RON), 90mΩ (maximum) USB power switch and two low on-resistance (RON), 4Ω (typical) USB 2.0 data switches. The devices also feature an enable input, a fault output with a 10ms fault recovery time, a 1ms overcurrent fade time, and an integrated overcurrent auto-retry function.
