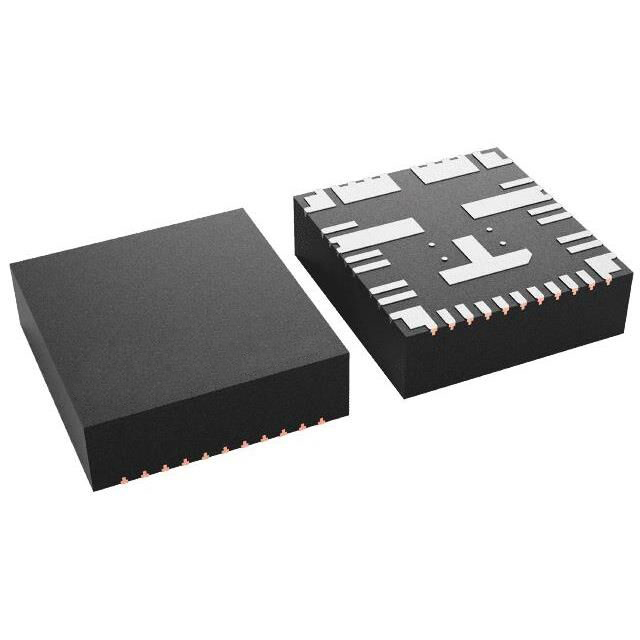

TPSM64406RCHR: 36V, High-Density Dual 3A Output Power Module, QFN-28

The TPSM64406RCHR is a highly integrated DC/DC design supporting a 36V input that combines multiple power MOSFETs, a shielded inductor, and multiple passive components in an enhanced HotRod™ QFN package. With output voltages from 1V to 16V, the device is designed to quickly and easily achieve low EMI designs on small PCBs. The overall design requires only six external components and eliminates the need for magnetic component sizing in the design flow.

Basic Information:

Model: TPSM64406RCHR

Package: QFN-28

Type: DC/DC Power Module

Type: Non-Isolated PoL Module

Number of Outputs: 2

Voltage - Input (Min): 3V

Voltage - Input (Max): 36V

Voltage - Output 1: 0.8 ~ 16V

Voltage - Output 2: 0.8 ~ 16V

Current - Output (Max): 3A, 3A Power (W): 96 W

APPLICATIONS: ITE (Commercial)

FEATURES: Adjustable Output, Remote Switching

OPERATING TEMPERATURE: -40°C ~ 125°C

EFFICIENCY: 91.5%

MOUNTING TYPE: Surface Mount, Wettable Sides

PACKAGE/HOUSING: 28-PowerFQFN Module

SIZE/DIMENSIONS: 0.28" L x 0.26" W x 0.08" H (7.0mm x 6.5mm x 2.0mm)

Vendor Device Package: 28-QFN-FCMOD (6.5x7)

TPSM64406RCHR Applications:

Test and Measurement and Aerospace and Defense

Factory Automation and Control

Buck and Inverting Buck/Boost Power Supplies
