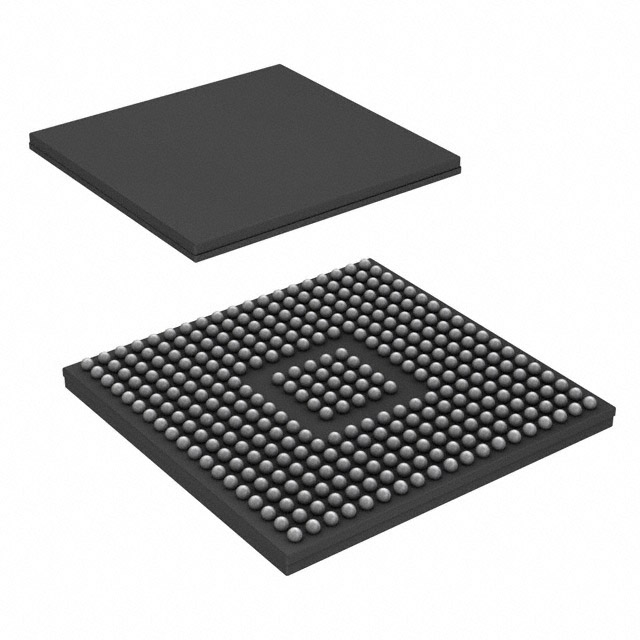

For picture reference, please see the specifications
< >

Commodity Model:TMS5703137DZWTQQ1

Trade Name:TMS5703137DZWTQQ1

Data Manual:TMS5703137DZWTQQ1.pdf

Brand:TI

Particular Year:23+

Package:337-LFBGA

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
TMS5703137DZWTQQ1
Package
337-LFBGA
Describe
ARM® Cortex®-R4F Automotive, AEC-Q100, Hercules™ Microcontroller IC 16/32-bit 180MHz

Product Description

The TMS5703137DZWTQQ1 16/32-bit RISC Flash microcontroller features a secure architecture and is a high-performance, automotive-grade microcontroller designed for use in secure systems. The secure architecture includes ECC on Flash and data SRAM, CPU and memory built-in self-test (BIST) logic, parity on peripheral memory, loop functions on peripheral I/O, and a dual-core CPU running in lock-step mode.The TMS5703137DZWTQQ1 integrates an ARM Cortex-R4F floating-point CPU, which delivers an efficient 1.66 DMIPS/MHz performance. The CPU can deliver up to 298 DMIPS of performance by using configurations up to 180 MHz. The device features 3MB of integrated Flash memory and 256KB of data RAM that supports single-bit error correction and double-bit error detection. In addition, the device features a variety of communication interfaces, including three MibSPIs, two SPIs, a LIN, an SCI, three DCANs, an I2C module, an Ethernet, and a FlexRay controller.


Product Attributes

Core Processor: ARM® Cortex®-R4F

Core specification: 16/32-bit

Speed: 180MHz

Connectivity: CANbus, EBI/EMI, Ethernet, FlexRay, I²C, LINbus, MibSPI, SCI, PI, ART/USART

Peripherals: DMA, POR, PWM, WDT

Number of I/O: 120

Program memory capacity: 3MB (3M x 8)

Program memory type: Flash

EEPROM Size: 64K x 8

RAM Size: 256K x 8

Voltage - Supply (Vcc/Vdd): 1.14V ~ 3.6V

Data Converter: A/D 24x12b

Oscillator Type: External

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package/Housing: 337-LFBGA

Supplier Device Package: 337-NFBGA (16x16)


Applications

• Braking Systems

• Auxiliary systems

• Aerospace and avionics

• Electric power steering

• Railway communications

• Hybrid and electric vehicle inverter systems

• Off-road vehicles
