The TMS5701227CZWTQQ1 features peripherals for real-time control applications, including two Next Generation High-End Timer (N2 HET) timing coprocessors, up to 44 I/O terminals, seven enhanced quadrature encoder pulse (ePWM) modules with up to 14 outputs, six enhanced capture (eCAP) modules, two enhanced quadrature encoder pulse ( eQEP) modules, and two 12-bit analogue-to-digital converters (ADCs) supporting up to 24 inputs.

The TMS5701227CZWTQQ1 16/32-bit RISC Flash microcontrollers (MCUs) are a family of high-performance automotive-grade microcontrollers for safety systems. It features a safety architecture that includes dual CPUs in lockstep, CPU and memory built-in self-test (BIST) logic, ECC on Flash and data SRAM, parity on peripheral memories, and loopback functionality on peripheral I/O. The TMS5701227CZWTQQ1 device integrates the ARM Cortex- R4F floating-point CPU that delivers a high efficiency of 1.66 DMIPS/MHz and has a configuration that can run up to 180 MHz delivering up to 298 DMIPS. The device supports the word invariant high priority [BE32] format.

Product Attributes

Core Processor: ARM® Cortex®-R4F

Core specification: 32-bit dual core

Speed: 180MHz

Connectivity: CANbus, EBI/EMI, Ethernet, FlexRay, I²C, LINbus, MibSPI, SPI, CI, ART/USART

Peripherals: DMA, POR, PWM, WDT

Number of I/O: 101

Program memory capacity: 1.25MB (1.25M x 8)

Programme memory type: Flash

EEPROM Size: 64K x 8

RAM Size: 192K x 8

Voltage - Supply (Vcc/Vdd): 1.14V ~ 3.6V

Data Converter: A/D 24x12b

Oscillator Type: External

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

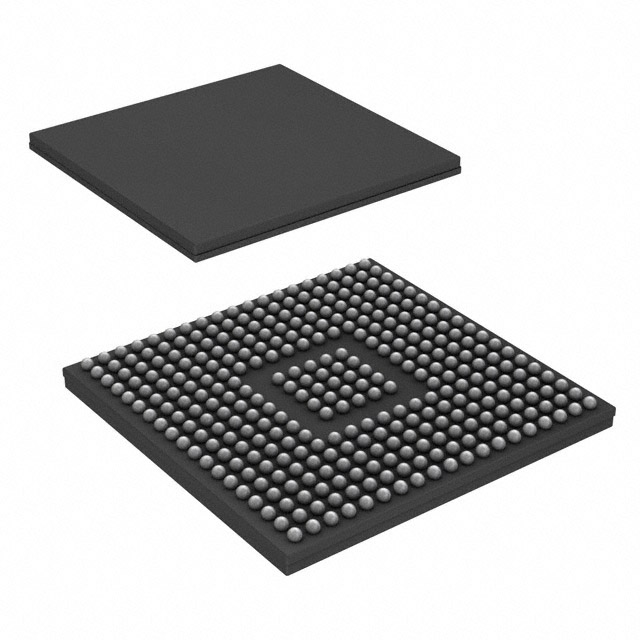

Package/Housing: 337-LFBGA

Supplier Device Package: 337-NFBGA (16x16)

Applications

• Braking systems (ABS and ESC)

• Electric Power Steering (EPS)

• Hybrid and electric vehicle inverter systems

• Battery Management Systems (BMS)

• Active Driver Assistance Systems (ADAS)

• Space and Avionics

• Railway

• Off-road vehicles
