The TMS320F28377DPTPQ dual-core microcontroller is a 32-bit floating-point microcontroller unit (MCU) designed for advanced closed-loop control applications. These applications include industrial drive and servo motor control, solar inverters and converters, digital power, transportation and power line communications. the TMS320F28377DPTPQ supports the new dual-core C28x architecture, which significantly improves system performance while integrating analogue and control peripherals. This allows designers to consolidate control architectures, eliminating the need for multiple processors in high-end systems. The family features two CLA real-time control coprocessors, a standalone 32-bit floating-point processor that runs at the same speed as the main CPU. the CLA responds to peripheral triggers and executes code simultaneously with the main C28x CPU. This parallel processing capability effectively doubles the computational performance of a real-time control system.

Product Attributes

Core Processor: C28x

Core specification: 32-bit dual-core

Speed: 200MHz

Connectivity: CANbus, EBI/EMI, I²C, McBSP, SCI, SPI, uPP, UART/USART, USB

Peripherals: DMA, POR, PWM, WDT

Number of I/O: 97

Program memory capacity: 1MB (512K x 16)

Program memory type: Flash

EEPROM Capacity: -

RAM Size: 102K x 16

Voltage - Supply (Vcc/Vdd): 1.14V ~ 3.47V

Data Converter: A/D 20x12b, 9x16b; D/A 3x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

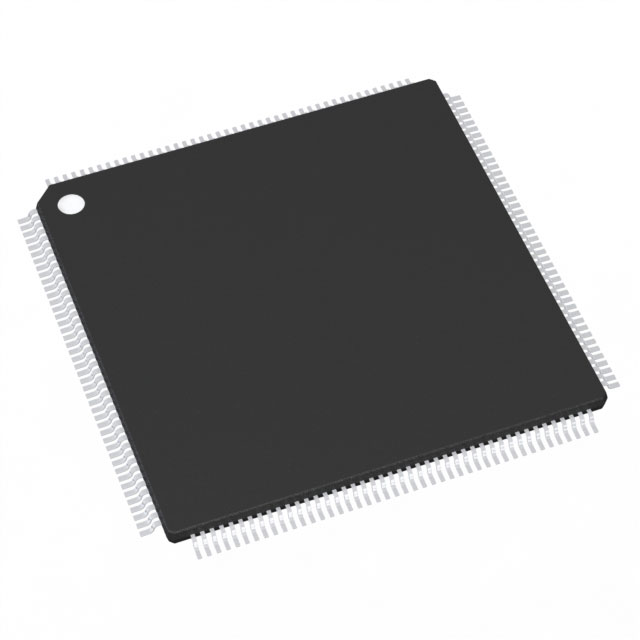

Package/Housing: 176-LQFP Exposed Pad

Supplier Device Package: 176-HLQFP (24x24)

Applications

• Medium/short range radar

• Traction Inverter Motor Control

• HVAC Large Commercial Motor Control

• Automatic Sorting Equipment

• CNC Control

• AC Charging Stations

• DC Charging Stations

• Electric Vehicle Charging Station Power Modules

• Power Conversion Systems (PCS)

• Central inverters

• Solar Optimiser

• String Inverters

• Inverters and Motor Controls

• On-Board (OBC) and Wireless Chargers

• Linear Motor Segment Controllers

• Servo Drive Control Modules

• AC Input Brushless DC Motor Drivers

• DC Input Brushless DC Motor Drivers

• Industrial AC-DC

• Three-Phase Uninterruptible Power Supplies
