The ADV3225ACPZ is a high-speed 16 × 8 analogue crosspoint switching matrix with a -3 dB signal bandwidth greater than 750 MHz and a slew rate greater than 2500 V/µs.

The ADV3225ACPZ has eight built-in independent output buffers, which can be placed in a high-impedance state to parallelise the crosspoint outputs, thus preventing the shutdown channel from supplying a load to the output bus.The ADV3225ACPZ has a gain of +2 and is powered from a ±5 V supply. Channel switching is achieved via a serial digital control interface (allowing multiple devices to be daisy-chained) or a parallel control interface; each output can be updated independently without reprogramming the entire array.

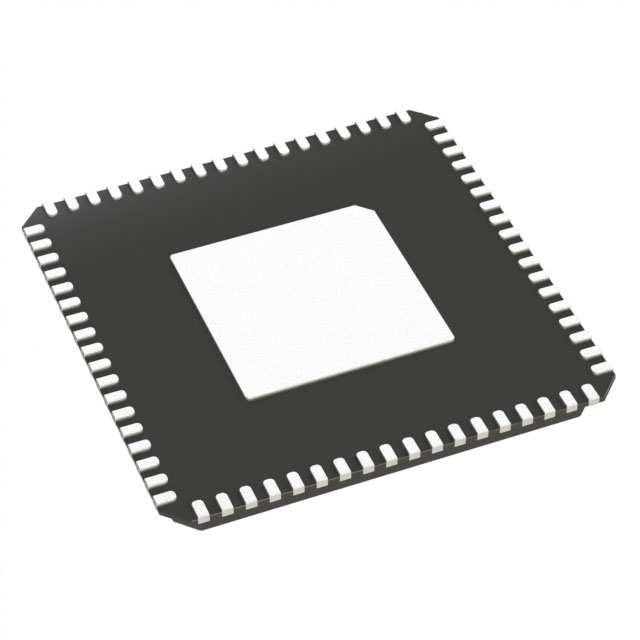

The ADV3225ACPZ is available in a 72-pin LFCSP package rated over the -40°C to +85°C industrial temperature range.

Features - ADV3225ACPZ

16 x 8 high-speed non-blocking switch array

Pinouts and functionality comparable to AD8110/AD8111

Directly compatible with ADV3228/ADV3229 8 x 8 arrays

Complete Solution

Buffered inputs

Programmable high impedance outputs

8 output amplifiers, G = +2 (ADV3225)

Drives 150 Ω loads

Powered by ±5 V supply

Low power consumption: 0.5 W

Excellent AC performance - refer to datasheet for more information.

Switch arrays can be programmed serially or in parallel

72-pin LFCSP package (10 mm x 10 mm)

Applications - ADV3225ACPZ

Routing high-speed signals, including:

Video (NTSC, PAL, S, SECAM, YUV, RGB)

Compressed video (MPEG, wavelet)

Class 3 digital video (HDB3)

Data Communication

Telecommunications
