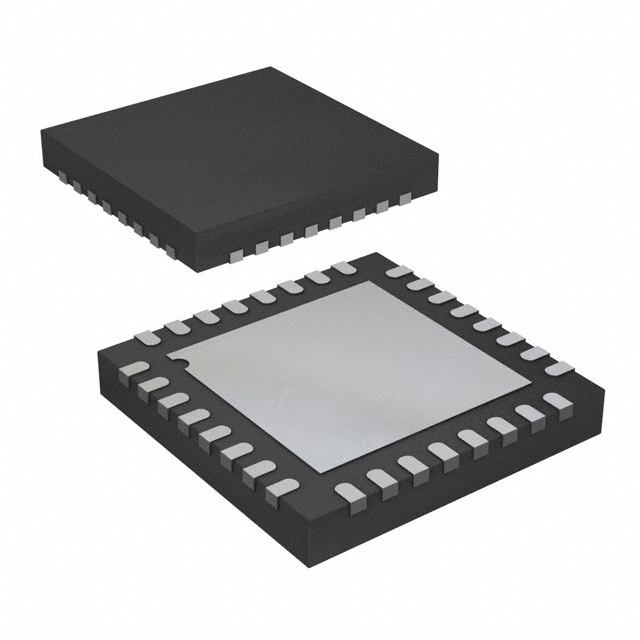

The ADG2128WBCPZ is an 8 × 12 analog crosspoint switch array arranged in 8 columns and 12 rows, with a total of 96 switch channels. The array is bi-directional and the rows and columns can be configured as either inputs or outputs. In addition, all switch channels can be reset/turned off using the RESET option. At power-up, all switches are in the off state. The device is available in a 32-pin, 5 mm × 5 mm LFCSP package.

Basic Information:

Model No.: ADG2128WBCPZ

Type: Analog Crosspoint Switch IC

Product Details: ADG2128WBCPZ Analog Switch IC - I2C CMOS 8 × 12 Analog Switch Array with Dual/Single Power Supply

Applications: Telecommunications, Ultrasound Equipment

Multiplexer/Demultiplexer Circuit: 12:8

Number of channels: 1

On-Resistance (Max): 50 Ohms

Voltage - Supply, Single (V+): 12V

Voltage - Supply, Dual (V±): ±5V

Voltage - Supply, Dual (V±): ±5V -3db Bandwidth: 210MHz

Characteristics: I2C

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

Package/Housing: 32-WFQFN Unpadded Pad, CSP

Supplier Device Package: 32-LFCSP-WQ (5x5)

ADG2128WBCPZ Product Features:

I2C-compatible interface

3.4 MHz high-speed I2C option

32-pin LFCSP (5 mm × 5 mm) package

Double-buffered input logic

Simultaneous update of multiple switches

Bandwidth up to 300 MHz

Fully specified in dual ±5 V/single +12 V operation

On-resistance: 35 Ω (max)

Low quiescent current: < 20 μA
