The ADPL44002AUJZ-2.5 is a CMOS low dropout (LDO) linear regulator that operates from 2.7V to 40V with an output current of up to 200mA.This high input voltage LDO is an ideal regulator for high-performance analogue and mixed-signal circuits operating from 39V down to 1.2V.

Basic Information:

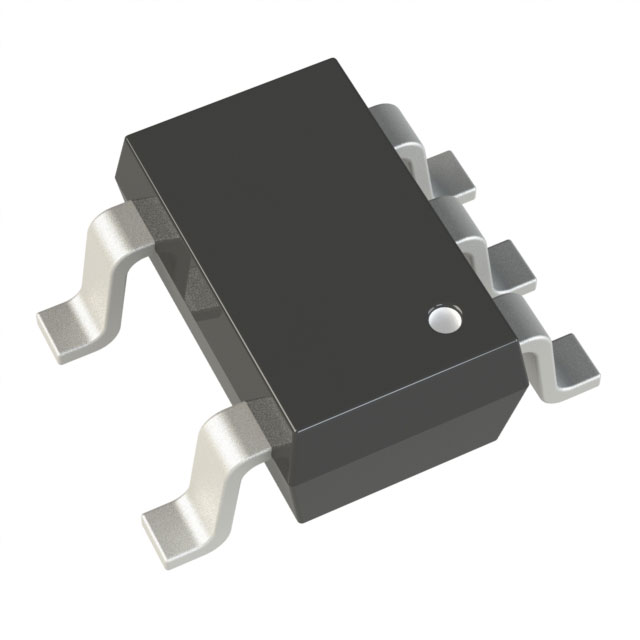

Model: ADPL44002AUJZ-2.5

Package: TSOT-5

Type: LDO Linear Regulator

Product Details: 40V, 200mA, Low Noise CMOS LDO Linear Regulator

ADPL44002AUJZ-2.5 - Product Attributes:

Output Configuration: Positive

Output Type: Fixed

Number of Regulators: 1

Voltage - Input (Max): 40V

Voltage - Output (Min/Fixed): 2.5V

Voltage Drop (Max): 0.45V @ 200mA

Current - Output: 300mA

Current - Static (Iq): 170 µA

Current - Supply (Max): 380 µA

PSRR: 78dB ~ 40dB (10kHz ~ 1MHz)

Control Features: Enable

Protection Features: Overcurrent, Over Temperature, Under Voltage Lockout (UVLO)

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package/Shell: SOT-23-5 Fine, TSOT-23-5

Supplier Device Package: TSOT-23-5
