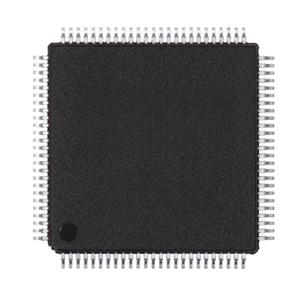

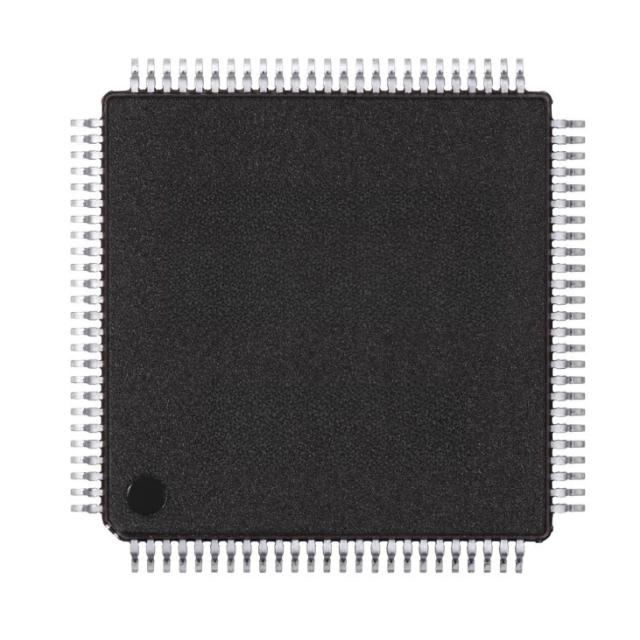

The LPC5514JBD100Y microcontroller (MCU) is a 32-bit Arm® Cortex®-M33 based MCU designed for general purpose embedded applications. With a frequency of 150MHz, it provides a secure foundation for protecting valuable IP and isolating data through Trustzone® technology. This simplifies the design and software development of digital signal control systems through the integration of digital signal processing (DSP) instructions.The LPC5514JBD100Y meets these security requirements with support for secure boot, HASH, AES, RSA, UUID, dynamic encryption and decryption, debug authentication, and TBSA compliance. Typical applications include industrial IoT, industrial automation, building control, security applications, diagnostic equipment, general embedded and consumer electronics.

The LPC5514JBD100Y family offers developers a number of advantages, including cost-effective 40nm NVM process technology and pin, software and peripheral compatibility. These MCUs feature the CASPER encryption engine, up to 256KB of on-chip flash memory, up to 96KB of on-chip SRAM, and the PRINCE module for dynamic flash encryption/decryption. In addition, the LPC5514JBD100Y includes CAN FD, five general-purpose timers, a Sctimer/PWM, an RTC/Alarm Timer, a 24-bit Multi-Rate Timer (MRT), and Window Watchdog Timer (WWDT). These MCUs also include nine flexible serial communication peripherals (USART, SPI, high-speed SPI and I2C/I2S interfaces), programmable logic units (PLUs), 16-bit ADCs, comparators and temperature sensors.

Product Attributes

Core Processor: ARM® Cortex®-M33

Core specification: 32-bit

Speed: 150MHz

Connectivity: Flexcomm, I²C, SPI, UART/USART, USB

Peripherals: Undervoltage Detect/Reset, DMA, I²S, POR, PWM, RNG, WDT

Number of I/O: 64

Program memory capacity: 128KB (128K x 8)

Program memory type: Flash

EEPROM Capacity: -

RAM Size: 80K x 8

Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V

Data Converter: A/D 10x16b SAR

Oscillator Type: Internal

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

Package/Housing: 100-LQFP Exposed Pad

Supplier Device Package: 100-HLQFP (14x14)

Applications

• Industrial Internet of Things

• Industrial Automation

• Building Control

• Security Applications

• Diagnostic Equipment

• Consumer Electronics

• General Embedded
