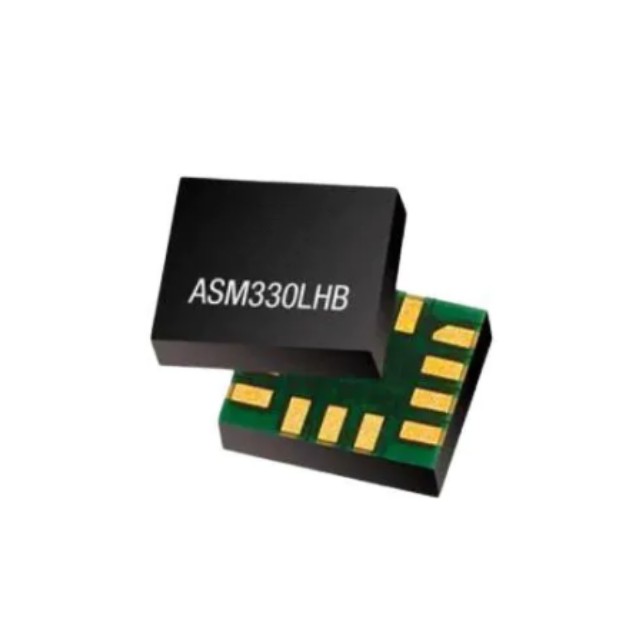

The ASM330LHBTR is an IMU sensor that offers ASIL B compliance if used in conjunction with a certified software library and features a 3-axis digital accelerometer and a 3-axis digital gyroscope with an extended temperature range up to +105 °C.

Features

• AEC-Q100 qualified

• ASIL B compliant if used in conjunction with a certified software library (ISO 26262:2018)

• Extended temperature range from -40 to +105 °C

• Embedded compensation for high stability over temperature

• Accelerometer user-selectable full scale up to ±16 g

• Extended gyroscope range from ±125 to ±4000 dps

• Dual operating modes: high-performance and low-power mode

• I²C, MIPI I3CSM, and SPI serial interfaces

• Six-channel synchronized output to enhance accuracy of dead-reckoning algorithms

• Programmable finite state machine

• Machine learning core

• Smart programmable interrupts

• Embedded 3 KB FIFO available to underload host processor

• ECOPACK and RoHS compliant

Applications

• Satellite precise positioning

• Vehicle-to-everything (V2X)

• ADAS systems

• Active suspension

• Radar, lidar, and camera digital stabilization

• Door/trunk modules

• Motion-activated functions
