AIS3624DQTR is an ultra-low-power highperformance three-axis accelerometer with a digital serial interface SPI standard output, an I2C

compatible interface is also available.

Product Attributes Of AIS3624DQTR

Type: Digital

Axis: X, Y, Z

Acceleration Range: ±6g, 12g, 24g

Sensitivity (LSB/g): 344 (±6g) ~ 85 (±24g)

Bandwidth: 25Hz ~ 500Hz

Output Type: I²C, SPI

Voltage - Supply: 2.4V ~ 3.6V

Features: Adjustable Bandwidth, Selectable Scale

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

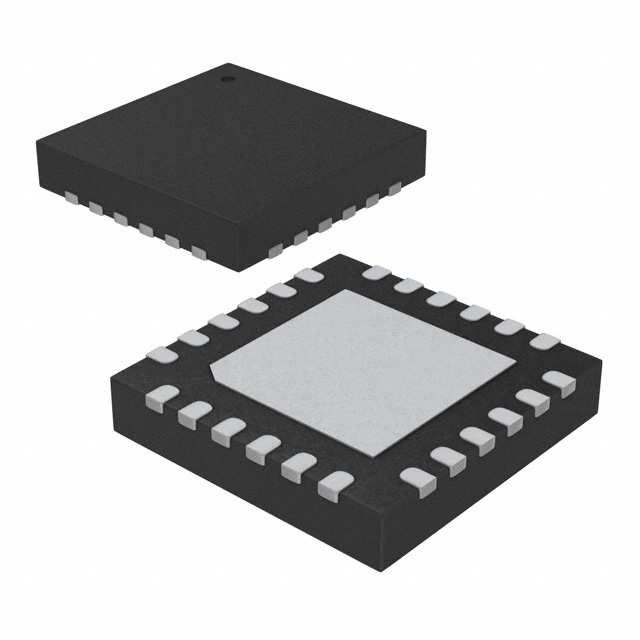

Package / Case: 24-FQFN Exposed Pad

Supplier Device Package: 24-QFN (4x4)

Features Of AIS3624DQTR

Wide supply voltage range: 2.4 V to 3.6 V

1.8 V low voltage compatible IOs

Ultra-low-power mode consumption down to 10 μA

SPI/I2C digital output interface

16-bit data output, 12-bit resolution

2 independent programmable interrupt generators

System sleep-to-wake function

Embedded self-test

Extended temperature range -40°C to 105°C

AIS3624DQTR High-performance motion sensor for automotive applications: ultra-low-power digital output 3-axis accelerometer.
