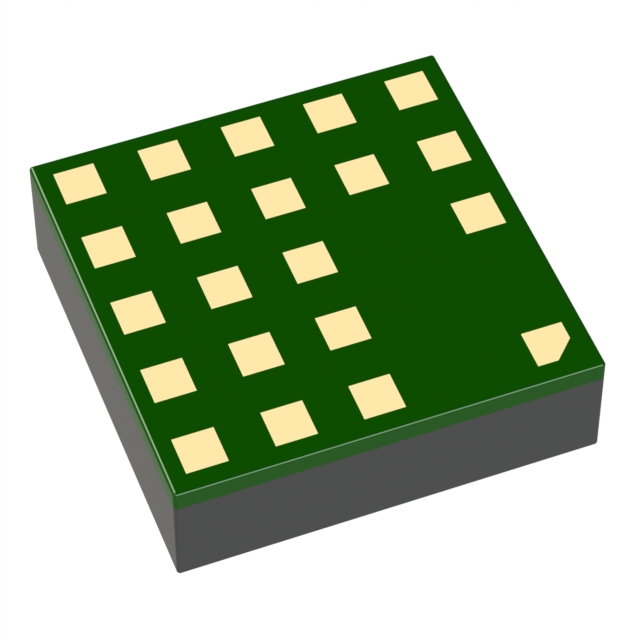

ADXL346ACCZ: Versatile 3-Axis, Digital Output, Ultra-Low Power Digital Accelerometer, LGA-16

Basic Information:

Model: ADXL346ACCZ

Package: LGA-16

Type: Digital Accelerometer

ADXL346ACCZ - Product Attributes:

Type: Digital

Axis: X, Y, Z

Acceleration range: ±2g, 4g, 8g, 16g

Sensitivity (LSB/g): 256 (±2g) ~ 32 (±16g)

Bandwidth: 0.05Hz ~ 1.6kHz

Output Type: I2C, SPI

Voltage - Supply: 1.7V ~ 2.75V

Features: Adjustable Bandwidth

Operating Temperature: -40°C ~ 85°C

Mounting Type: Surface Mount

Package/Housing: 16-VFLGA

Supplier Device Package: 16-LGA (3x3)

ADXL346ACCZ - Product Features:

Ultra-low power consumption: as low as 23 μA in measurement mode and 0.2 μA in standby mode at VS = 2.6 V (typical)

Power consumption automatically scales with bandwidth

User-selectable resolution

 10-bit fixed resolution

 Full resolution, resolution increases with g range, reaching a maximum resolution of 13 bits at ±16 g (maintaining a 4 mg/LSB scale factor over all g ranges)

Patent-pending embedded memory management system uses FIFO technology to minimise host processor loads

Single/double click detection

Activity/inactivity monitoring

Free-fall detection

Orientation detection function supports four-position and six-position simultaneous detection

Power and I/O voltage range: 1.7 V to 2.75 V

SPI (3-wire and 4-wire) and I2C digital interfaces

Flexible interrupt mode, mappable to any interrupt pin
