HMC8108LC5: 9GHz to 10GHz, X-Band, GaAs, MMIC, Low Noise Converter, LCC-32

Model: HMC8108LC5

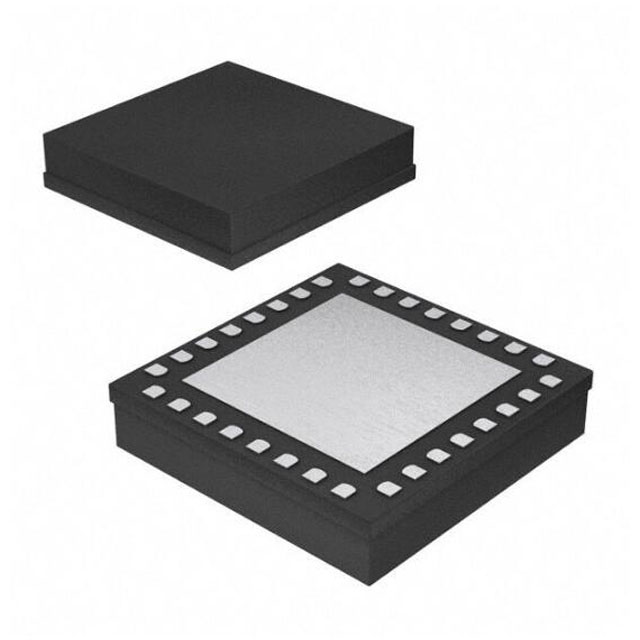

Package: LCC-32

Type: X-Band Gallium Arsenide (GaAs) Low Noise Converter

The HMC8108LC5 is a compact X-band gallium arsenide (GaAs) monolithic microwave integrated circuit (MMIC) in-phase/quadrature (I/Q) low noise converter in a ceramic, lead-free chip carrier package that is RoHS compliant.The HMC8108LC5 converts a 9 GHz to 10 GHz radio frequency (RF) input signal to a typical single-ended intermediate frequency (IF) converter with an output frequency of 60 MHz. The HMC8108LC5 converts a 9 GHz to 10 GHz RF input signal to a typical single-ended intermediate frequency (IF) signal with an output frequency of 60 MHz. The device has a small-signal conversion gain of 13 dB, a noise figure of 2 dB, and an image rejection of 20 dBc.

HMC8108LC5 - Product Features:

Conversion gain: 13 dB typical

Image Rejection: 20 dBc typical

Noise Figure: 2 dB typical

1 dB Compressed Input Power: Typical: -4 dBm

Input third order intercept: 6 dBm typical

Output saturation power: 10 dBm typical

LO leakage at IF port: -20 dBm typical

LO leakage at RF port: -37 dBm typical

32-terminal, 5 mm × 5 mm, ceramic leadless chip carrier (LCC)

Applications:

Point-to-point and point-to-multipoint radios

Satellite communications
