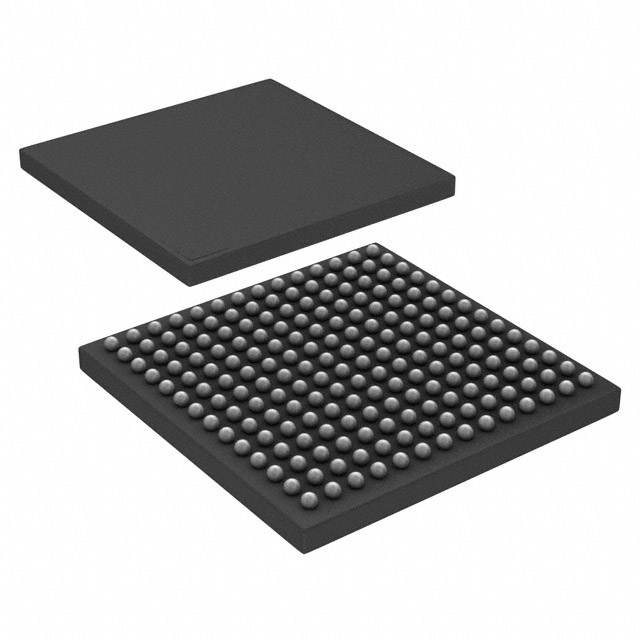

MIMXRT1064DVJ6B Product Details

The i.MX RT1064 processor has 4MB on-chip Flash and 1MB on-chip RAM. 512 KB SRAM can be flexibly configured as TCM or general-purpose on-chip RAM, while another 512 KB SRAM is general-purpose on-chip RAM. i.MX RT1064 integrates an advanced power management module with DCDC and LDO, reducing the complexity of external power supplies and simplifies power sequencing.

The i.MX RT1064 also offers a variety of memory interfaces including SDRAM, RAW NAND FLASH, NOR FLASH, SD/eMMC, Quad SPI, and a variety of other interfaces for connecting peripherals such as WLAN, Bluetooth™, GPS, display and camera sensors. i.MX RT1064 features rich audio and video capabilities. This includes an LCD display, basic 2D graphics, camera interface, SPDIF and I2S audio interface. i.MX RT1064 has analogue interfaces such as ADC, ACMP and TSC.

The i.MX RT1064 is particularly useful for applications such as

- Industrial human-machine interfaces (HMI)

- Motor control

- Home appliances

Product Category: ARM Microcontrollers - MCU

Series: RT1064

Mounting Style: SMD/SMT

Core: ARM Cortex M7

Program memory size: 4 MB

Data bus width: 32 bit

ADC resolution: 2 x 12 bit

Max. clock frequency: 600 MHz

Number of inputs/outputs: 127 I/O

Data RAM size: 1 MB

Supply voltage - min: 925 mV

Supply voltage - max: 1.3 V

Min. operating temperature: 0 C

Max. operating temperature: + 85 C
