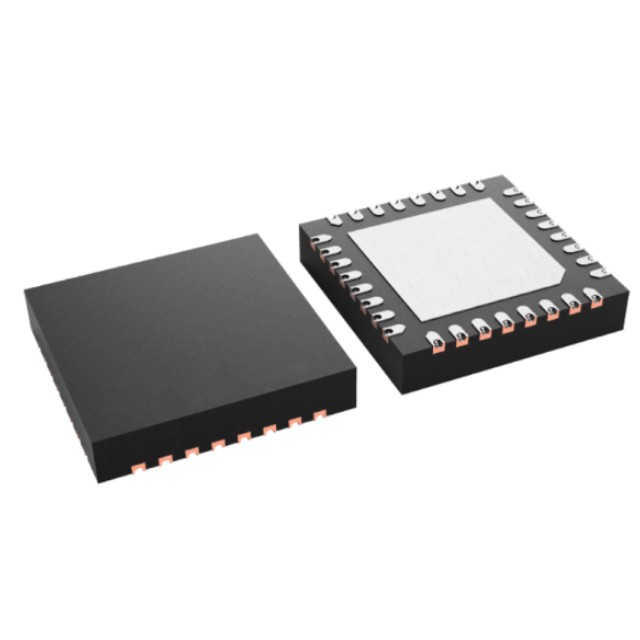

M0G3506QRHBRQ1 microcontrollers (MCUs) is part of the MSP highly integrated, ultra-low-power 32-bit MCU based on the enhanced Arm Cortex-M0+ 32-bit core platform operating at up to 80MHz frequency. The cost-optimized MCUs offer high-performance analog peripheral integration, support extended temperature ranges from -40°C to 125°C, and operate with supply voltages ranging from 1.62V to 3.6V.

Features Of M0G3506QRHBRQ1

Core

Arm 32-bit Cortex-M0+ CPU with memory protection unit, frequency up to 80MHz

Functional Safety Quality-Managed

Functional Safety Manual and FMEDA available to aid in functional safety system design

Operating characteristics

Extended temperature: –40°C up to 125°C

Wide supply voltage range: 1.62V to 3.6V

Memories

Up to 128KB of flash memory with error correction code (ECC)

Up to 32KB of SRAM with hardware parity

High-performance analog peripherals

Two simultaneous sampling 12-bit 4Msps analog-to-digital converters (ADCs) with up to 17 external channels

14-bit effective resolution at 250ksps with hardware averaging

One 12-bit 1Msps digital-to-analog converter with integrated output buffer (DAC)

Two zero-drift zero-crossover chopper op-amps (OPA)

0.5µV/°C drift with chopping

Integrated programmable gain stage, up to 32x

One general-purpose amplifier (GPAMP)

Three high-speed comparators (COMP) with 8-bit reference DACs

32ns propagation delay in high-speed mode

Support low-power mode operation down to 0.7µA

Programmable analog connections between ADC, OPAs, COMP and DAC

Configurable 1.4V or 2.5V internal shared voltage reference (VREF)

Integrated temperature sensor

Integrated supply monitor

Optimized low-power modes

RUN: 101µA/MHz (CoreMark)

SLEEP: 487µA at 4MHz

STOP: 47µA at 32kHz

STANDBY: 1.5µA with RTC and SRAM retention

SHUTDOWN: 80nA with IO wake-up capability

Intelligent digital peripherals

7-channel DMA controller

Math accelerator supports DIV, SQRT, MAC and TRIG computations

Seven timers supporting up to 22 PWM channels

One 16-bit general-purpose timer

One 16-bit general-purpose timer supports QEI

Two 16-bit general-purpose timers support low-power operation in STANDBY mode

One 32-bit high-resolution general-purpose timer

Two 16-bit advanced timers with deadband support up to 12 PWM channels

Two window-watchdog timers

RTC with alarm and calendar mode

Enhanced communication interfaces

Four UART interfaces; one supports LIN, IrDA, DALI, Smart Card, Manchester, and three support low-power operation in STANDBY mode

Two I2C interfaces support up to FM+ (1Mbit/s), SMBus/PMBus, and wakeup from STOP mode

Two SPIs, one SPI supports up to 32Mbits/s

One Controller Area Network (CAN) interface supports CAN 2.0 A or B and CAN-FD

Clock system

Internal 4MHz to 32MHz oscillator with up to ±1.2% accuracy (SYSOSC)

Phase-locked loop (PLL) up to 80MHz

Internal 32kHz low-frequency oscillator (LFOSC) with ±3% accuracy

External 4MHz to 48MHz crystal oscillator (HFXT)

External 32kHz crystal oscillator(LFXT)

External clock input

Data integrity and encryption

Cyclic redundancy checker (CRC-16, CRC-32)

True random number generator (TRNG)

AES encryption with 128- or 256-bit key

Flexible I/O features

Up to 60 GPIOs

Two 5V-tolerant IOs

Two high-drive IOs with 20mA drive strength

Applications Of M0G3506QRHBRQ1

Automotive body electronics and Lighting

Automotive Gateway

Steering Wheel Systems

Automotive Motor Control

DC to AC Inverters

Automotive Interior Lighting

Door handle modules

Kick to open modules

Vehicle Occupancy Detection

Seat Comfort Module
