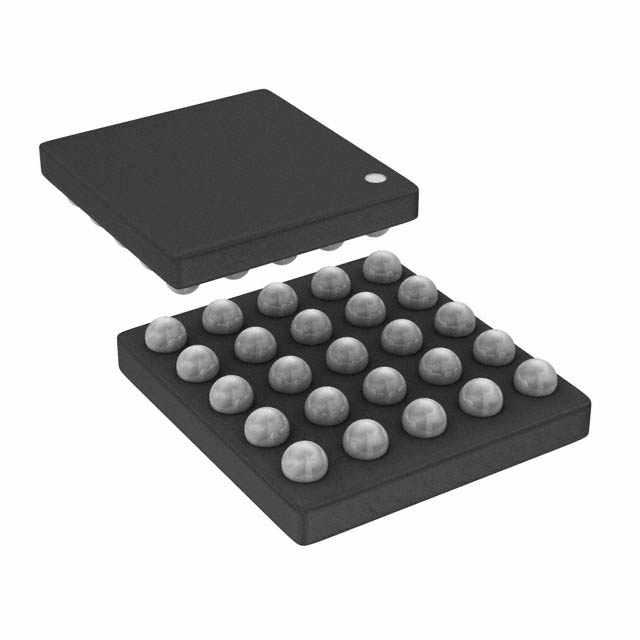

The CY8C4045FNI-S412 is a 32-bit ARM Cortex-M0+ microcontroller (MCU) belonging to the PSoC 4 4000S series, packaged in a 25-WLCSP (2.02×1.93mm) package, and is suitable for low-power embedded system design. The chip integrates 32 KB Flash, 4 KB SRAM, and supports capacitive sensing (CapSense®), LCD driver, PWM control, and other functions, widely used in consumer electronics, industrial control, IoT devices, and other fields.

CY8C4045FNI-S412 Core Features

• 48 MHz Cortex-M0+, single-cycle 32×32 multiplier

• 32 KB Flash + 4 KB SRAM, all with ECC

• 16×10-bit SAR ADC + 2×7-bit IDAC

• Capacitive sensing (CapSense®) hardware engine, supporting sliders/touch buttons/proximity detection

• 27 configurable GPIOs, mappable to UART, SPI, I²C, LIN, PWM, and other peripherals

• Low power consumption: Deep-Sleep 2 µA, Hibernate 150 nA

• Industrial temperature range: –40 °C to +85 °C

• Package: 25-WLCSP (2.02 mm × 1.93 mm, 0.4 mm pitch)

CY8C4045FNI-S412 Key Parameters

CPU: ARM Cortex-M0+ 48 MHz

Flash: 32 KB

SRAM: 4 KB

GPIO: 27, all configurable

ADC: 16 × 10-bit SAR

DAC: 2 × 7-bit IDAC

Communication: UART×2, SPI×2, I²C×2, LIN, IrDA

Operating voltage: 1.71 V – 5.5 V

Operating temperature: –40 °C to +85 °C

Package: 25-WLCSP
