Service Telephone:86-755-83294757
Trade Name:Switching Regulator

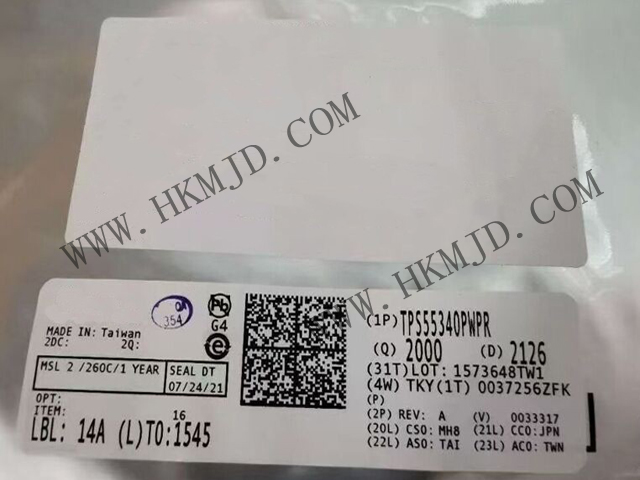

Data Manual:TPS55340PWPR.pdf
Brand:TI
Particular Year:23+
Package:HTSSOP14
Delivery Date:New and Original
Stock: 20000pcs
The TPS55340PWPR is a monolithic non-synchronous switching regulator with an integrated 5A, 40V power switch. The device can be configured into a variety of standard switching regulator topologies including boost, SEPIC and isolated flyback. The device has a wide input voltage range to support applications powered by multiple batteries or via 3.3V, 5V, 12V and 24V regulated supply rails.
Features
- Internal 5A, 40V low-side MOSFET switch
- 2.9V to 32V input voltage range
- ±0.7% of base voltage
- 0.5mA quiescent operating current
- 2.7µA off supply current
- Fixed frequency current mode PWM control
- Frequency adjustable from 100kHz to 1.2MHz
- Can be synchronised with external clock
- Adjustable soft start time
- Pulse jump mode for high efficiency at light loads
- Cycle-by-cycle current limit, thermal shutdown and UVLO protection
- QFN-16 (3mm × 3mm) and HTSSOP-14 packages with PowerPAD™
- Wide TJ operating range: -40°C to 150°C
- Use the TPS55340 and create custom designs with WEBENCH Power Designer
Applications
- 3.3V, 5V, 12V, 24V power conversion
- Boost, SEPIC and flyback topologies
- Thunderbolt ports, USB Type-C power transfer and power docking stations for tablets and portable PCs
- Industrial power systems
- ADSL modems
