Product Description:

Microchip's AgileSwitch® phase arm SiC MOSFET power modules use both SiC MOSFETs and SiC diodes, so they combine the benefits of both devices. These power modules are available in an ultra-low inductance SP6LI package with a maximum stray inductance of 3 nH. These SP6LI power modules are available in 1200V and 1700V models with a case temperature (TC) of 80°C. The high power density and compact form factor of the SP6LI package allows for a lower number of modules to be connected in parallel, enabling a complete system and helping designers to further reduce device size.

Features:

SiC power MOSFETs

- Low RDS(on)

- High temperature performance

MSCSM70AM025CT6LIAG Technical specifications:

Technology: Silicon Carbide (SiC)

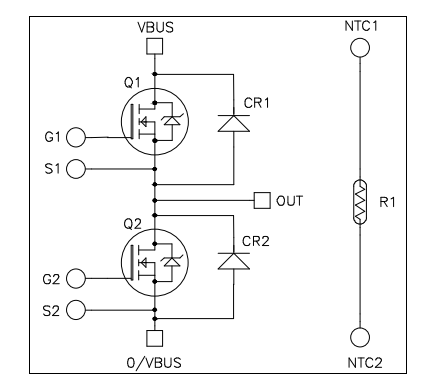

Configuration: 2 x N-channel

FET function: -

Drain source voltage (Vdss): 700V

Current at 25°C - Continuous drain (Id): 689A (Tc)

On-resistance (max) at different Id, Vgs: - On-resistance (max) at different Id

Vgs(th) at different Id (max): 2.4V @ 24mA (standard)

Gate charge (Qg) for different Vgs (max): 1290nC @ 20V

Input capacitance (Ciss) at different Vds (max): 27pF @ 700V

Power - max: 1882W (Tc)

Operating Temperature: -

Mounting Type: Chassis Mount

Package / Housing: Module

Supplier Device Package: SP6C LI

Basic Part Number: MSCSM70

Applications:

Solder converters

Switching mode power supplies

Uninterruptible power supplies

Electric vehicle motors and traction drives
