DD380N22K - 50mm 2200V Rectifier Diode Module in pressure contact technology

DD380N22K - Product Description:

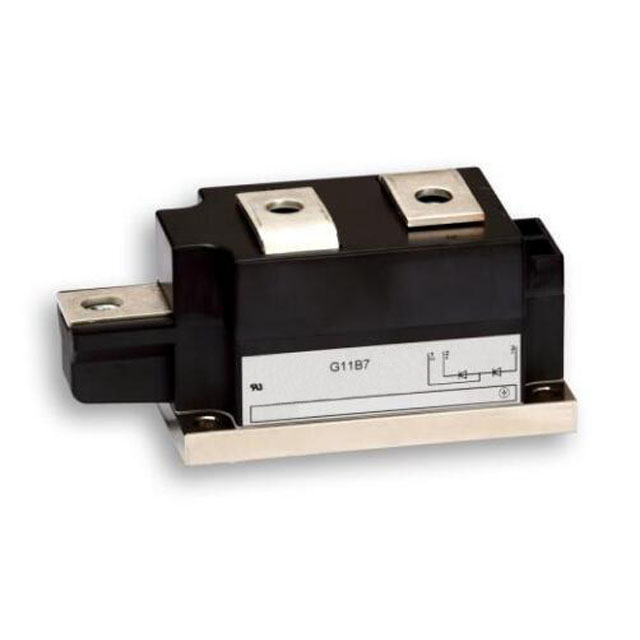

DD380N22K is 2200V, 380A, 50mm Prime Block Rectifier Diode module for phase control in pressure contact technology using an isolated copper base plate.

DD380N22K - Product Attributes:

Diode Configuration: 1 Pair Series Connection

Technology: Standard

Voltage - DC Reverse (Vr) (Max): 2200 V

Current - Average Rectified (Io) (per Diode): 393A

Voltage - Forward (Vf) (Max) @ If: 1.16 V @ 800 A

Speed: Standard Recovery >500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr: 25 mA @ 2200 V

Operating Temperature - Junction: 150°C

Mounting Type: Chassis Mount

Package / Case: Module

DD380N22K - Summary of Features:

Pressure contact technology for high reliability

Advanced Medium Power Technology (AMPT)

Industrial standard package

Electrically insulated base plate

DD380N22K - Applications:

Motor Control

Uninterruptible power supplies (UPS)
