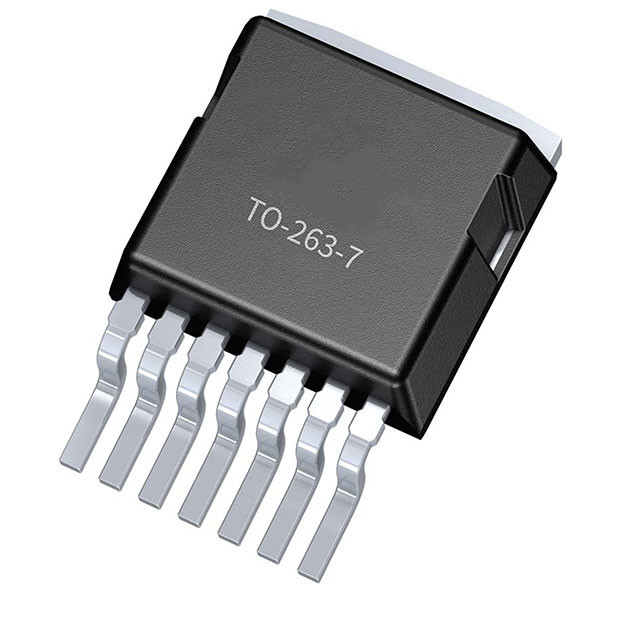

The AIMBG75R020M1H is a 750 V, 81A automotive silicon carbide MOSFET discrete device in the TO-263-7 package. The MOSFET is suitable for automotive applications such as on-board chargers/PFCS, auxiliary inverters and uninterruptible power supplies (UPS).

Infineon CoolSiC™ MOSFEts are built on best-in-class, channeled semiconductor processes optimized for the lowest losses in applications and the highest reliability in operation.

Specifications

FET type: N channel

Technology: SiC

Drain-source voltage (Vdss) : 750 V

Current at 25°C - Continuous Drain (Id) : 81A (Tj)

Driving voltage (Max Rds On, min Rds On) : 15V, 20V

On-resistance (Max.) at different ids and Vgs: 18 milliohm @ 34.1A, 20V

Vgs(th) (Max.) : 5.6V@12.2mA for different ids

Gate charge (Qg) at different Vgs (Max.) : 70 NC-@18 V

Vgs (Max) : +23V, -5V

Input capacitance (Ciss) at different Vds (Max.) : 2326 PF-@500V

FET function: -

Power dissipation (Max.) : 326W (Tc)

Operating temperature: -55°C ~ 175°C (TJ)

Class: Automobile class

Qualification: AEC-Q101

Mounting type: Surface mount type

Supplier device package: PG-TO263-7
