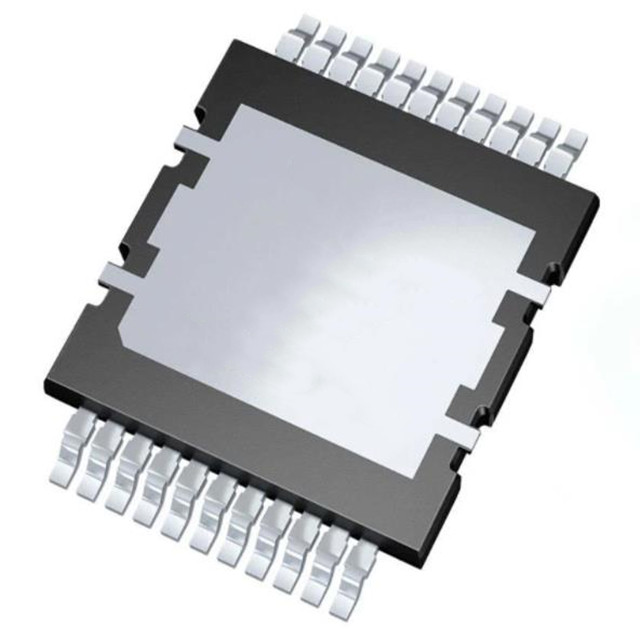

IMDQ75R007M2H is a CoolSiC™ MOSFET launched by Infineon, which is the second-generation product. It adopts silicon carbide (SiC) technology. Its main specifications include:

FET type: N-channel

Technology: SiCFET (Silicon carbide)

Drain-source voltage (Vdss) : 840 V

Current at 25°C - continuous drain (Id) : 222A (Tc)

Drive voltage (maximum Rds On, minimum Rds On) : 15V, 20V

On-resistance (maximum value) at different ids and Vgs: 6.1 milliohms @ 131.5A, 20V

Vgs(th) (maximum value) at different ids: 5.6V @ 28.9mA

Gate charge (Qg) at different Vgs (maximum value) : 171 nC @ 18 V

Vgs (maximum value) : +23V, -7V

Input capacitance (Ciss) at different Vds (maximum value) : 5922 PPF @ 500 V

FET function: -

Power dissipation (maximum) : 789W (Tc)

Operating temperature: -55°C to 175°C (TJ)

Installation type: Surface mount type

Supplier device packaging: PG-HDSP-22

Applicable scenarios

Youdaoplaceholder0 solid state relay/isolator ‌

Youdaoplaceholder0 static switch applications ‌ (such as fuses, circuit protection)

Youdaoplaceholder0 High-efficiency power supply systems ‌ (such as inverters, charging equipment) ‌

The IMDQ75R007M2H enhances system stability while ensuring safety by optimizing the Crss/Ciss parameters and VGS(th) threshold.
