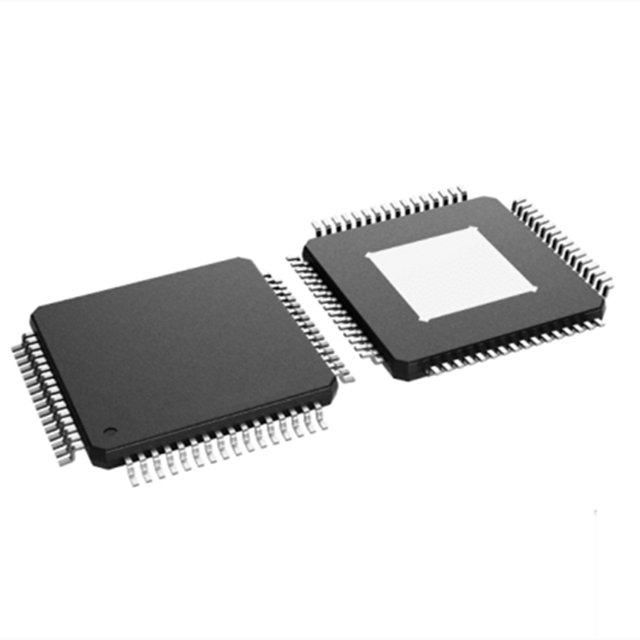

For picture reference, please see the specifications
< >

Commodity Model:AFE11612PAPSEP

Trade Name:Analog front end

Brand:TI

Particular Year:24+

Package:64-HTQFP

Delivery Date:New and original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
AFE11612PAPSEP
Package
64-HTQFP
Describe
Radiation-resistant 12-bit analog front end with multi-channel ADC, DAC and temperature sensor

Product Description

The AFE11612PAPSEP is a highly integrated analog monitoring and control device designed for high-density general-purpose monitoring and control systems. The device contains 12 12-bit digital-to-analog converters (Dacs) and a 16-channel 12-bit analog-to-digital converter (ADC).


Features

• Radiation resistance:

- Single particle locking (SEL) immunity up to LET = 43 MeV-cm2/mg at ambient temperatures of 125°C

- Single Particle functional Interruption (SEFI) has LET eigenvalues up to 43MeV-cm2/mg

- Total ionizing Radiation Dose (TID) RLAT/RHA characteristic value up to 20 krad(Si)

• Enhanced Aerospace Plastics (Aerospace EP) :

- Meet ASTM E595 gas release specifications

- Supplier Project Drawing (VID) V62/22614

- Military grade temperature range: -55 °C to +125°C

- Integrated manufacturing, assembly and testing base

- Gold bonding wire, NiPdAu lead coating

- Wafer batch traceability

- Extended product life cycle

• 12 monotonic 12-bit Dacs

- 0V to 5V output range

- The DAC is turned off to a user-defined level

• 16 Input 12-bit SAR ADC

- High sampling rate: 500kSPS

- 16 single-ended inputs or 2 differential inputs and 12 single-ended inputs

- Programmable out-of-limit alarm

• 8 GPIO pins

• Internal 2.5V reference voltage

• Two remote temperature sensors

• Internal temperature sensor

• Configurable SPI and I2C interfaces

- Operating voltage from 2.7V to 5.5V


Applications

Command and Data Processing (C&DH)

• Communication load

• Radar imaging payloads

• Optical imaging payload

• General analog monitoring and control
