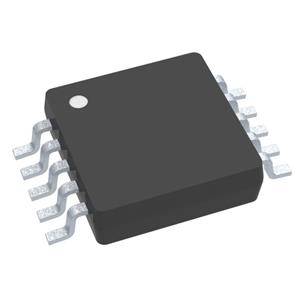

For picture reference, please see the specifications
< >

Commodity Model:DAC70501MDGSR

Trade Name:Digital To Analog Converters

Brand:TI

Particular Year:24+

Package:VSSOP-10

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
DAC70501MDGSR
Package
VSSOP-10
Describe
14-Bit 1-LSB INL, Voltage-Output Digital To Analog Converters With Precision Internal Reference

Product Description

DAC70501MDGSR - 14-Bit 1-LSB INL, Voltage-Output DACs With Precision Internal Reference


Product Description

DAC70501MDGSR is 14-bit digital-to-analog converters (DACs) are highly accurate, low-power devices with voltage-output. It include a 2.5-V, 5-ppm/°C internal reference, giving full-scale output voltage ranges of 1.25 V, 2.5 V, or 5 V. The DACx0501 incorporate a power-on-reset (POR) circuit that makes sure the DAC output powers up at zero scale or midscale, and remains at that scale until a valid code is written to the device.


Product Features

• 14-bit performance: 1-LSB INL and DNL (max)

• Low glitch energy: 4 nV–s

• Wide power supply: 2.7 V to 5.5 V

• Buffered output range: 5 V, 2.5 V, or 1.25 V

• Very-low power: 1 mA at 5.5 V

• Integrated 5-ppm/°C (max), 2.5V precision reference

• Pin-selectable serial interface:

– 3-wire, SPI compatible up to 50-MHz

– 2-wire, I2C compatible

• Power-on-reset: Zero scale or midscale

• 1.62V VIH with VDD = 5.5 V

• Temperature range: –40°C to +125°C

• Packages: Small 8-pin WSON and 10-pin VSSOP


Applications

• Oscilloscopes and digitizers

• Parametric measurement unit (PMU)

• Data acquisition (DAQ)

• Flat panel display (FPD) shorting bar pattern generator

• Analog output module

• Process analytics (pH, gas, concentration, force and humidity)

• Programmable dc power supply
