The 9DBL0653ANDGI8 zero-latency/fanout buffer is a low-power, high-performance product in Renesas' full-featured PCIe family. The buffer supports PCIe Gen1-5 and provides a loss of signal (LOS) indicator. The device can be easily upgraded from the 9DBL0651.

Features

Loss of Signal (LOS) output; supports fault tolerant systems

Supports PCIe Gen1-5 CC and IR in fan-out mode

Supports PCIe Gen1-5 CC in high-bandwidth ZDB mode

Direct connection to 85Ω transmission line; saves 24 resistors compared to standard PCIe devices

Supports spread spectrum; reduces EMI

Pin/SMBus selectable PLL bandwidth and PLL bypass; minimises phase jitter for various applications

Easily AC-coupled with other logic families, see Application Note AN-891.

Space-saving 5 × 5 mm 40-VFQFPN; minimal board space

Category: Application-Specific Clocking/Timing

Packaging: Tray

Part Status: On Sale

PLL: With Bypass

Primary Use: PCI Express (PCIe)

Input: Clock

Output: HCSL

Number of Circuits: 1

Ratio - Input:Output: 1:6

Differential - Input:Output: Yes/Yes

Frequency - Max: 200MHz

Voltage - Supply: 3.135V ~ 3.465V

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

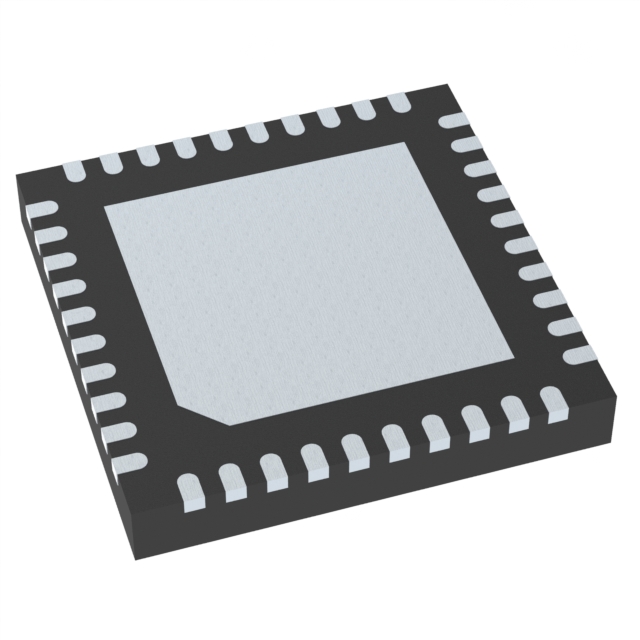

Package/Shell: 40-VFQFN Exposed Pad

Supplier Device Package: 40-VFQFPN (5x5)
