The ADCLK944BCPZ is an ultra-fast clock fan-out buffer, manufactured using ADI's proprietary XFCB3 silicon-germanium (SiGe) bipolar process. This device is designed for high-speed applications that require low jitter performance.

This device features one differential input with a center tap, differential, and 100 Ω on-chip termination resistor. It supports DC-coupled LVPECL, CML, 3.3V CMOS (single-ended) inputs, and AC-coupled 1.8V CMOS, LVDS, and LVPECL inputs. The VREF pin can be used to provide bias for AC-coupled inputs.

The ADCLK944BCPZ features four full-swing emitter-coupled logic (ECL) output drivers. For the LVPECL (positive ECL) output, VCC can be biased to the positive power supply and VEE to ground. For ECL output, VCC can be biased to ground and VEE to the negative power supply.

Technical Specification

Model: ADCLK944BCPZ

Type: Fan-out Buffer (Distribution)

Number of circuits: 1

Ratio - Input: Output: 1:4

Differential - Input: Output: Yes/Yes

Input: CML, CMOS, LVDS, LVPECL

Output: ECL, LVPECL

Frequency - Maximum: 7 GHz

Voltage - Power supply: 2.375V to 3.63V

Operating temperature: -40°C to 85°C

Installation type: Surface mount type

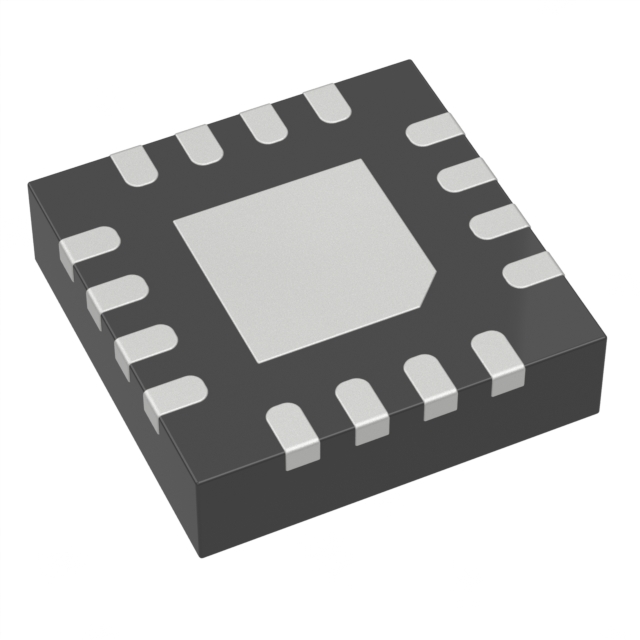

Package/Shell: 16-LFCSP

Application field

ADCLK944BCPZ is widely applied in the following fields:

Low-jitter clock allocation

Clock and data signal recovery

Level conversion

Wireless communication

Wired communication

Medical and industrial imaging

Automatic testing equipment and high-performance instruments and meters
