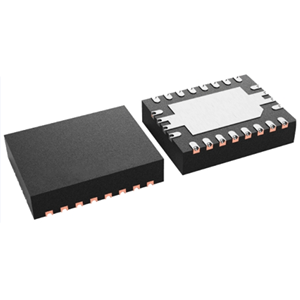

For picture reference, please see the specifications
< >

Commodity Model:DRV8242HQRHLRQ1

Trade Name:Motor driver

Brand:TI

Particular Year:24+

Package:20-VQFN

Delivery Date:New and original

Stock: 3333pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
DRV8242HQRHLRQ1
Package
20-VQFN
Describe
Automotive 40V 6A H bridge driver with integrated current detection and feedback

Product Description

The DRV824x-Q1 device family is a fully integrated H-bridge driver suitable for a variety of automotive applications.

The DRV8242HQRHLRQ1 is a bidirectional full bridge driver with PWM or phase enable control. Designed with BiCMOS high-power process technology nodes, this single-chip power package device system provides excellent power handling and thermal performance, small package size and easy layout, but also provides EMI control, accurate current detection and diagnostic functions, and high robustness.


Features

Complies with AEC-Q100 standard for automotive applications:

Temperature Class 1: -40 °C to +125°C, TA

Documentation for functional safety system design is available

4.5V to 35V (absolute maximum 40V) operating voltage range

QFN package: RON_LS + RON_HS = 250 Mω

IOUT Max = 6 A (QFN)

PWM operates at up to 25KHz with automatic dead time assertion

Configurable flutter rate and spread frequency clock for low electromagnetic interference (EMI)

Integrated current detection (no shunt resistor required)

Proportional load current output on the IPROPI pin

Configurable current regulation

Protection and diagnostic performance with configurable fault response (latch or retry)

Load diagnostics are performed in the open and on states to detect open loads and short circuits

Voltage monitoring on the power supply (VM)

Overcurrent protection

Overheat protection

nFAULT Indicates the fault on the pin

3.3V and 5V logical inputs are supported

Low sleep current: A typical value of -1.3µA at 25°C

3 models: HW (H), SPI (S) or SPI (P)

Single full bridge using PWM or PH/EN mode

Device series comparison table


Associated Products

Model

Brand

Package

Quantity

Describe

DRV8305NPHPR

TI

HTQFP-48

9000

Maximum 45V three-phase smart gate driver with current shunt amplifier and SPI

L9997ND013TR

ST

SO-20

4000

Motor driver CMOS, DMOS parallel 20-SO

NCV7601PG

TI

PDIP-16

3000

Power switch/driver 1:1 Bipolar 1.8A 16-PDIP

NCV7720DQAR2G

ON

SSOP24

5000

Motor Driver Power MOSFET SPI 24-SSOP-EP

L6229D

ST

SO-24

3600

DMOS driver for three-phase brushless DC motors

TLE9166EQ

INFINEON

TSDSO-32

2500

Motor driver NMOS PWM, SPI PG-TSDSO-32

TLE94003EP

INFINEON

TSDSO-14

2500

Half-bridge (3) driver DC motor, universal DMOS 2A TSDSO-14

IMC302A-F064

INFINEON

LQFP-64

3000

PMSM/BLDC motor & PFC controller with additional 32-bit microcontroller

IMC101T-F06

INFINEON

LQFP-64

2000

Motor driver simulation, PWM PG-LQFP-64

IMC101T-F048

INFINEON

LQFP-48

2500

Motor driver CMOS simulation, PWM PG-LQFP-48
