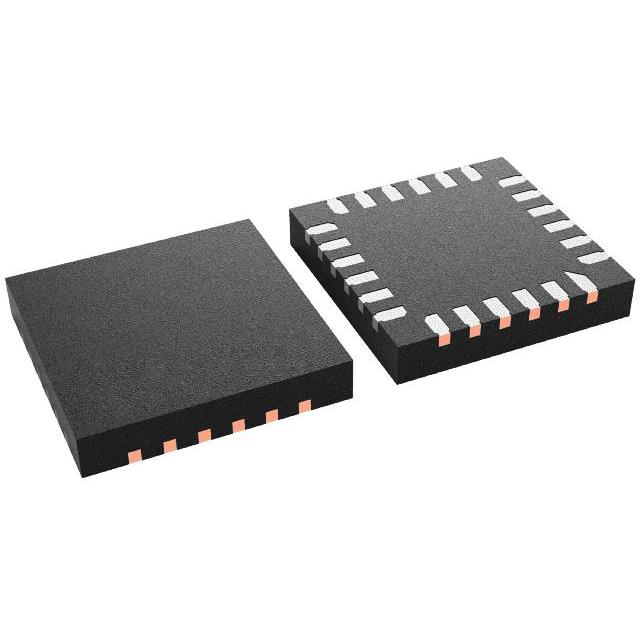

AFE78201RRUR - 14-Bit Digital-to-Analog Converters (DACs) With Voltage Reference and Diagnostic ADC for Low-Power Applications

Product Overviews

AFE78201RRUR is highly-integrated, high-accuracy, extremely low-power digital-to-analog converters (DACs) with voltage outputs designed for processcontrol and industrial-automation applications. The AFEx8201 devices include most of the components required to design a 4mA to 20mA, 3‑wire or 4-wire sensor transmitter or analog output module. In addition to the highly accurate DAC, the AFEx8201 incorporate a 10-ppm/°C voltage reference and diagnostic analog-to-digital converter (ADC).

Features Of AFE78201RRUR

• Low quiescent current: 170 µA (typical), 210 µA (maximum)

• 16-bit or 14-bit monotonic high-performance DAC

– DAC output range: 0 V to 2.5 V

– Digital DAC slew-rate control

– 4-LSB INL at 16 bits

– 0.07% FSR (max) TUE from –40°C to +125°C

• 12-bit 3.84kSPS ADC for advanced diagnostics

• Integrated 1.25V reference at 10 ppm/°C (max)

• Internal 1.2288MHz oscillator with clock output

• Digital interfaces:

– Serial peripheral interface (SPI)

– Universal asynchronous receiver-transmitter (UART)

• Fault detection: CRC bit error checking, windowed watchdog timer, diagnostic ADC

• Wide operating temperature: –55°C to +125°C

Applications

• Process control and industrial automation

• PLC or DCS I/O modules

• 3-wire and 4-wire transmitters

• 4-mA to 20-mA loop-powered applications
