The DAC38RF90IAAVR 14-bit PLL digital-to-analog converter provides high performance, high bandwidth and RF sampling. DAC38RFxx devices enable dual-channel input data rates up to 3.33GSPS or 8-bit single-channel operating states up to 9GSPS. Provides low-power JESD204B interface with up to 8 channels and a maximum bit rate of 12.5Gbps.

Product specification

Product category: DAC - DAC

Series: DAC38RF90

Resolution: 14 bit

Sampling ratio: 9 GS/s

Number of channels: 2

Stable time: 1 ns

Output type: Voltage

Interface type: JESD204B

Operating temperature: -40°C ~ 85°C

Installation style: SMD/SMT

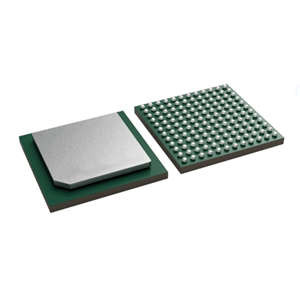

Package/housing: FCBGA-144

Structure: Voltage

Features: Super high speed

Humidity sensitivity: Yes

Number of converters: 2

Pd- Power dissipation: 3.779W

Power consumption: 3.8W

Reference type: External, internal

Reference voltage: 900 mV

SFDR - Spury-free dynamic range: 72 dB

Off: None

Power supply voltage - Max: 1.89V

Supply voltage - Min. : -1.89V
