The AD5941BCPZ High Precision, low power and Electrochemical Simulation Front End (AFE) is designed for portable applications requiring high precision, electrochemical measurement technology. The AD5941 is used for voltage, current and impedance measurements, and can also be used to measure skin impedance, body impedance, and electrochemical gas detection applications.

Product attribute

Series: AD5941

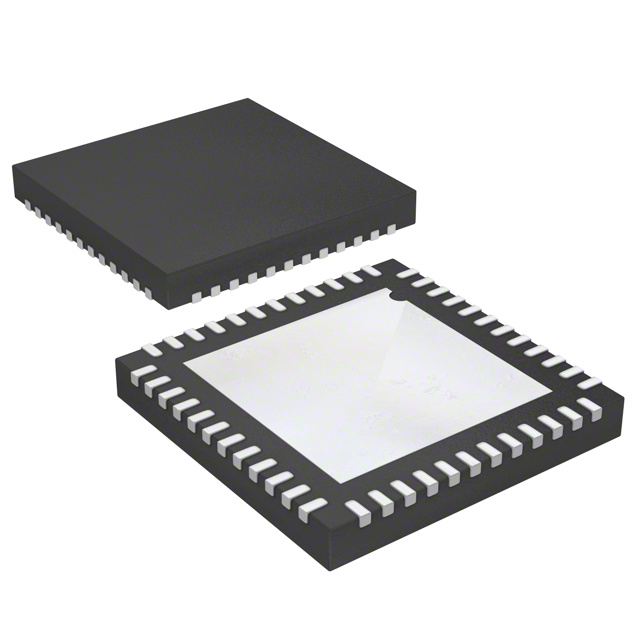

Package/Housing: LFCSP-48

Product: Converter

Type: ADC & DAC

Resolution: 12 bit, 16 bit

Number of channels: 24 channels

Supply voltage - Minimum: 2.8V

Power supply voltage - Max: 3.6V

Minimum operating temperature: -40 °C

Maximum operating temperature: + 85°C

Development kit: EVAL-AD5941ELCZ

DNL - Differential nonlinearity: 2.5 LSB

INL - Integral nonlinearity: 4.7 LSB

Interface type: SPI

Humidity sensitivity: Yes

Number of ADC channels: 1 Channel

Number of DAC channels: 2 channels

Reference type: Internal

Reference voltage: 1.82V, 2.5V

Sampling ratio: 400 kS/s

SNR - SNR: 80 dB

Unit weight: 5.651g
