AD9675KBCZ - Octal Ultrasound AFE with JESD204B

Part Number: AD9675KBCZ

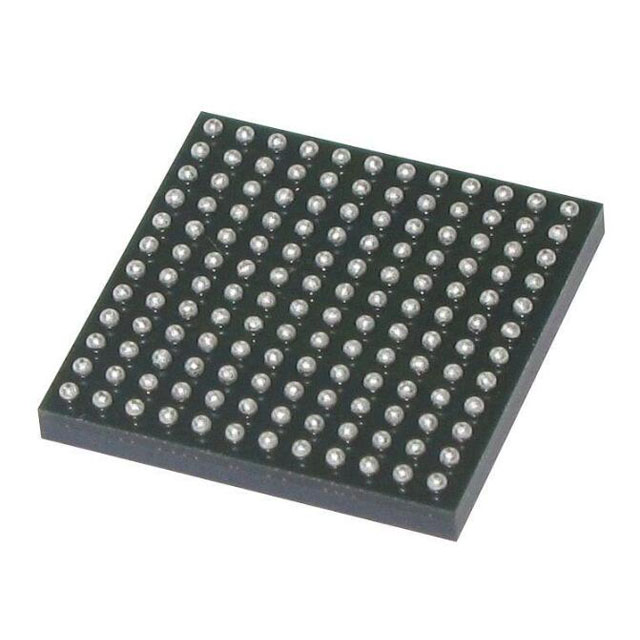

Package: CSPBGA-144

Type: Analog Front End

Description: Analog Front End - 8-Channel AFE 14-Bit 150mW 144-CSPBGA (10x10)

Product Overviews

AD9675KBCZ is 8-Channel Analog Front End, it designed for low cost, low power, small size, and ease of use for medical ultrasound. It contains eight channels of a variable gain amplifier (VGA) with a low noise preamplifier (LNA), a continuous wave (CW) harmonic rejection I/Q demodulator with programmable phase rotation, an antialiasing filter (AAF), an analog-to-digital converter (ADC), and a digital high-pass filter and RF decimation by 2 for data processing and bandwidth reduction.

Product Features

8 channels of LNA, VGA, AAF, ADC, and digital RF decimator

TGC channel input referred noise: 0.82 nV/√Hz, maximum gain

Flexible power-down modes

Fast recovery from low power standby mode: 2 μs

Low noise preamplifier (LNA)

Input referred noise: 0.78 nV/√Hz, gain = 21.6 dB

Programmable gain: 15.6 dB, 17.9 dB, or 21.6 dB

0.1 dB compression: 1000 mV p-p, 750 mV p-p, or 450 mV p-p

Flexible active input impedance matching

Analog-to-digital converter (ADC)

SNR: 75 dB, 14 bits up to 125 MSPS

RF digital decimation by 2 and high-pass filter

Applications

Medical imaging/ultrasound

Nondestructive testing (NDT)
