Trade Name:N-Channel MOSFETs
Brand:INFINEON
Particular Year:24+
Package:PG-TO263-3
Delivery Date:New and Orignal
Stock: 1000pcs

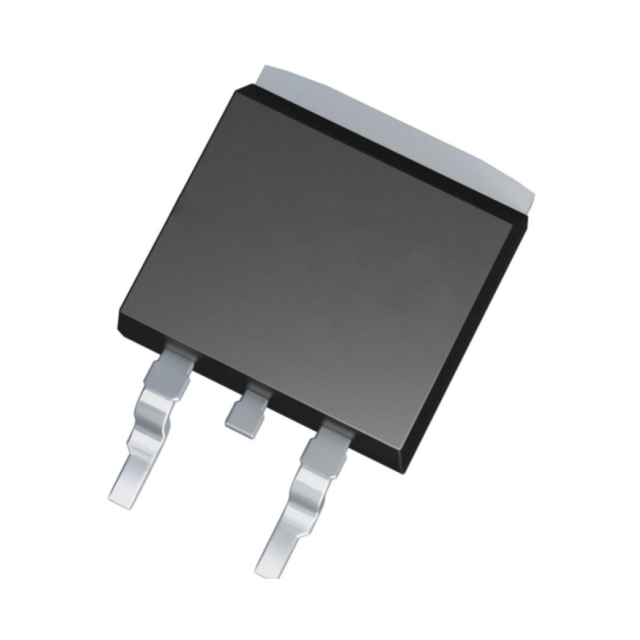

The IPB339N20NM6 is an N-channel MOSFET, normal level, with very low open resistance RDS (on), excellent gate charge x open resistance product (FOM), and very low reverse recovery charge (Qrr). High avalanche energy level, 175°C operating temperature, lead-free plating; RoHS compliant, classified as MSL1 according to J-STD-020, 100% seismic tested.
Product Properties
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Drain-source voltage (Vdss): 200 V
Current at 25°C - Continuous Drain (Id): 6.8A (Ta), 39A (Tc)
Drive Voltage (Max Rds On, Min Rds On): 10V, 15V
On-resistance (max) at different Id, Vgs: 31.8mOhm @ 26A, 15V
Vgs(th) at different Id (max): 4.5V @ 52µA
Gate Charge (Qg) (max) at varying Vgs: 24 nC @ 10 V
Vgs (max): ±20V
Input capacitance (Ciss) at varying Vds (max): 1600 pF @ 100 V
Power Dissipation (Max): 3.8W (Ta), 125W (Tc)
Operating Temperature: -55°C ~ 175°C (TJ)
Mounting Type: Surface Mount
Supplier Device Cover: PG-TO263-3-2
Package/Housing: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Model
Brand
Package
Quantity
Describe
ST
PowerFLAT-4
1000
N-channel logic level 40 V, 2.2 mΩ max., 167 A STripFET F8 Power MOSFET in a PowerFLAT 5x6 package
ST
PowerFLAT-4
1000
N-channel logic level 40 V, 2.2 mΩ max., 167 A STripFET F8 Power MOSFET in a PowerFLAT 5x6 package
ST
PowerFLAT-4
1000
Automotive N‑channel enhancement mode logic level 40 V, 0.75 mΩ max., 373 A STripFET F8 Power MOSFET
ST
PowerFLAT-4
1000
N-channel 100 V, 5 mΩ typ., 107 A, STripFET™ F7 Power MOSFET in a PowerFLAT™ 5x6 package
ST
PowerFLAT-4
1000
N-channel enhancement mode logic level 40 V, 0.8 mΩ max., 360 A, STripFET F8 Power MOSFET
ST
PowerFLAT-4
1000
N‑channel 100 V, 3.2 mΩ max., 158 A STripFET F8 Power MOSFET in a PowerFLAT 5x6 package
INFINEON
PG-TO247-4-11
1000
Through Hole N Channel 1200 V 69A (Tc) 326W (Tc) PG-TO247-4-11
INFINEON
PG-TO247-4-14
1000
Through Hole N Channel 1200 V 17A (Tc) 109W (Tc) PG-TO247-4-14
INFINEON
PG-TO247-4
1000
Through Hole N Channel 1200 V 31A (Tc) 169W (Tc) PG-TO247-4-14
INFINEON
PG-TO247-4
1000
Through Hole N Channel 1200 V 202A (Tc) 750W (Tc) PG-TO247-4-11
A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.
A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.
A: at present, our self-employed brands TI,ST,ADI,NXP,LATTICE,CYPRESS,INFINEON,XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.
A: You can inquire through the website, or by phone and email.
A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.
A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
