Trade Name:Pressure sensor
Brand:INFINEON
Particular Year:24+
Package:8-SMD
Delivery Date:New and original
Stock: 2000pcs

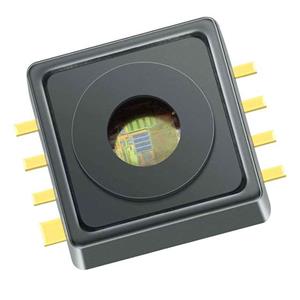

The KP215F1701XTMA1 is a small analog manifold air pressure sensor IC based on the principle of capacitance. It uses surface micromachining technology and has a single chip integrated signal conditioning circuit using BiCMOS technology. The sensor converts a pressure of 10 kPa to 115 kPa into a voltage range of 0.4 V to 4.65 V. The chip is packaged in a "green" SMD housing.
Product attribute
Type of stress: Absolute
Working pressure: 1.45PSI ~ 16.68PSI (10kPa ~ 115kPa)
Output type: Analog voltage
Output: 0.4V ~ 4.65V
Accuracy: ±0.333PSI (±2.3kPa)
Voltage - Power supply: 4.5V ~ 5.5V
Port size: -
Port type: no end port
Features: Amplified output, temperature compensation
Terminal type: SMD (SMT) connector
Maximum pressure: -
Operating temperature: -40°C ~ 140°C
Class: Automobile class
Qualification: AEC-Q100
Mounting type: Surface mount type
Package/shell: 8-SMD module
Supplier device package: -
Basic product number: KP215F1701
Model
Brand
Package
Quantity
Describe
Melexis
SOIC-16
2222
0 bar to 10.34 bar, MLX90830 Triphibian™ MEMS pressure sensor IC
Melexis
SOIC-16
2222
0.5%, 9.5mA, MLX90830 Triphibian™ MEMS Pressure Sensor IC
NXP
SIP-4
10000
Exhaust Gauge Pressure Pressure Transducer 29.01PSI (200kPa) Male - 0.19" (4.93mm) Tube 0mV ~ 40mV (10V) 4-SIP Module
INFINEON
PG-DSOSP-14
2000
Automotive tire pressure monitoring sensors with a pressure range of 100 to 900 kPa
INFINEON
PG-DSOSP-14
2000
Absolute Pressure sensor 14.5PSI ~ 203.05PSI (100kPa ~ 1400kPa) 14-BSSOP (0.220", 5.60mm wide)
INFINEON
8-SMD
2000
Absolute pressure Pressure sensor 1.45 to 4.35PSI (10kPa to 30kPa) 12 b 8-SMD module
INFINEON
8-SMD
2000
Absolute pressure Pressure sensor 1.45 to 58.02PSI (10kPa to 400kPa) 12 b 8-SMD module
INFINEON
8-SMD
2000
Absolute pressure Pressure sensor 8.7PSI to 23.93PSI (60kPa to 165kPa) 0.1V to 4.85V 8-SMD module
