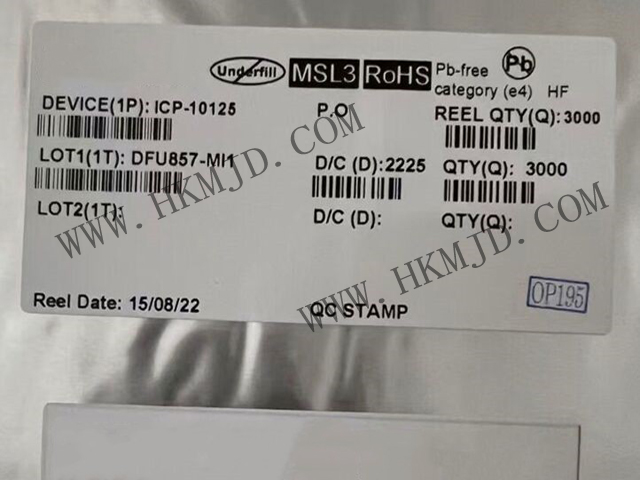

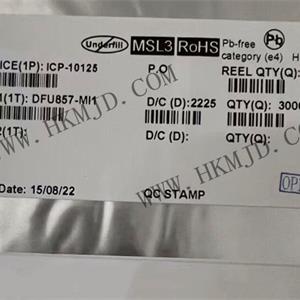

For picture reference, please see the specifications
< >

Commodity Model:ICP-10125

Trade Name:Pressure Sensor

Brand:TDK

Particular Year:25+

Package:SMD

Delivery Date:New and Original

Stock: 5000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TDK
Model
ICP-10125
Package
SMD
Describe
High Accuracy, Low Power, 10 atm Waterproof Barometric Pressure & Temperature Sensor IC

Product Description

The ICP-10125 pressure sensor is based on MEMS capacitive technology which provides ultra-low noise at the lowest power, enabling industry leading relative accuracy, sensor throughput, and temperature stability. The pressure sensor can measure pressure differences with an accuracy of ±1 Pa, an accuracy enabling altitude measurement differentials as small as 8.5 cm, less than the height of a single stair step.


Consuming only 1.3 μA @1 Hz, the device is available in a small footprint 3.55 × 3.55 × 1.45 mm chimney package with waterproofing gel providing IPx8 waterproofing to 10 atm. The ICP‑10125 is ideally suited for wearable fitness monitoring and battery powered IoT.


The ICP-10125 offers an industry leading temperature coefficient offset of ±0.5 Pa/ºC. The combination of high accuracy, low power, temperature stability, waterproofing in a small footprint enables higher performance barometric pressure sensing for sports activity identification and mobile indoor/outdoor navigation.


Features & Benefits

Pressure operating range: 30 to 110 kPa

Noise and current consumption:

0.4 Pa @ 10.4 μA (ULN mode)

0.8 Pa @ 5.2 μA (LN mode)

3.2 Pa @ 1.3 μA (LP mode)

Pressure Sensor Relative Accuracy: ±1 Pa for any 10 hPa change over 950 hPa – 1050 hPa at 25ºC

Pressure Sensor Absolute Accuracy: ±1 hPa over 950 hPa – 1050 hPa, 0ºC to 65ºC

Pressure Sensor Temperature Coefficient Offset: ±0.5 Pa/ºC over 25ºC to 45ºC at 100 kPa

Temperature Sensor Absolute Accuracy: ±0.4ºC

IPx8: Waterproof to 10 ATM

Temperature operating range: -40°C to 85°C

Host Interface: I²C at up to 400 kHz

Single Supply voltage: 1.8V ±5%

RoHS and Green compliant
